SiT8008BC-33-33S-12.288000 footprint, schematic symbol and 3D model by SiTime

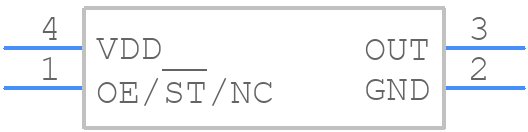

Symbol

PCB Footprints

3D Models

SiT8008BC-33-33S-12.288000 Details

Manufacturer Part Number:
SIT8008BC-33-33S-12.288000
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, Taiwan, Thailand
Manufacturer:
SiTime Corporation
YTEOL:
6.5
Additional Feature:
STANDBY; ENABLE/DISABLE FUNCTION; ALSO COMPATIBLE WITH HCMOS O/P
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
50%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
12.288 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Oscillator Type:
LVCMOS
Output Load:
15 pF
Output Low Current-Max:
4 mA
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12,94
Packing Method:
BULK
Physical Dimension:
5mm x 3.2mm x 0.75mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

SiTime provides a recommended PCB layout guide on their website, which includes guidelines for pad layout, trace routing, and decoupling capacitors to ensure optimal performance and minimize noise.
The SIT8008BC-33-33S-12.288000 is a programmable oscillator, and the frequency can be configured using SiTime's programming software, which is available on their website. The software allows you to select the desired frequency and generate a programming file that can be used to configure the device.
The SIT8008BC-33-33S-12.288000 has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
Yes, the SIT8008BC-33-33S-12.288000 is compatible with lead-free soldering processes and is RoHS compliant, making it suitable for use in environmentally friendly designs.
The typical power consumption of the SIT8008BC-33-33S-12.288000 is around 3.5mA, making it a low-power solution for clocking applications.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the SiT8008BC-33-33S-12.288000 schematic symbol, PCB footprint, and 3D model.
