SIT9501AI-02P2-3310-156.250000 - SiTime

Description: Ultra-low Jitter Differential XO for Standard Networking Frequencies 1.8V , 25 MHz to 644.53125 MHz , -40°C to 105°C

Download SIT9501AI-02P2-3310-156.250000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

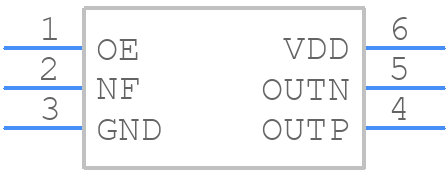

SIT9501AI-02P2-3310-156.250000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SIT9501AI-02P2-3310-156.250000 - SiTime PCB footprint - Other - Other - 2.0 x 1.6mm
click to zoom
3D Models
SIT9501AI-02P2-3310-156.250000 - SiTime - 3D model - Other - 2.0 x 1.6mm
click to zoom

SIT9501AI-02P2-3310-156.250000 Details

  • Manufacturer Part Number:

    SIT9501AI-02P2-3310-156.250000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PQFN, 6 PIN

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    7

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.33 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    156.25 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Equivalence Code:

    SOLCC6,.06,28

  • Packing Method:

    BULK

  • Physical Dimension:

    2.0mm x 1.6mm x 0.8mm

  • Rise Time-Max:

    0.33 ns

  • Screening Level:

    MIL-STD-883F

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SIT9501AI-02P2-3310-156.250000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guide on their website, which includes guidelines for pad layout, trace routing, and component placement to ensure optimal performance and minimize noise.
  • The SIT9501AI-02P2-3310-156.250000 is a programmable oscillator, and the frequency can be configured using SiTime's programming software, which is available on their website. The software allows you to select the desired frequency and generate a programming file that can be used to configure the device.
  • The SIT9501AI-02P2-3310-156.250000 has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
  • The SIT9501AI-02P2-3310-156.250000 operates on a supply voltage of 1.8V to 3.3V, making it compatible with a wide range of applications. However, it's always recommended to check the specific voltage requirements of your application and ensure that the oscillator is compatible.
  • The typical start-up time for the SIT9501AI-02P2-3310-156.250000 is around 10ms, although this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIT9501AI-02P2-3310-156.250000 Overview

Use the download button to access the SIT9501AI-02P2-3310-156.250000 schematic symbol, PCB footprint, and 3D model.
