3 X 3 MM, HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, POWERPAIR-8
ECCN Code:
EAR99
Manufacturer:
Vishay Intertechnologies
YTEOL:
0
Avalanche Energy Rating (Eas):
7 mJ
Case Connection:
DRAIN SOURCE
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
11 A
Drain-source On Resistance-Max:
0.024 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
S-XDSO-N8
JESD-609 Code:
e3
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
UNSPECIFIED
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
31 W
Pulsed Drain Current-Max (IDM):
30 A
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
SIZ300DT-T1-GE3 Frequently Asked Questions (FAQs)
The recommended storage temperature range for SIZ300DT-T1-GE3 is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
While the SIZ300DT-T1-GE3 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
The maximum allowable power dissipation for the SIZ300DT-T1-GE3 is 300 W, as specified in the datasheet. However, it's essential to consider the thermal resistance, junction temperature, and ambient temperature to ensure safe operation within the recommended power limits.
Yes, the SIZ300DT-T1-GE3 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
While the SIZ300DT-T1-GE3 is designed to be rugged, it's essential to consider the vibration specifications and ensure that the device is properly mounted and secured to withstand the expected vibration levels. Consult Vishay's application notes and guidelines for vibration testing and design considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIZ300DT-T1-GE3 Overview

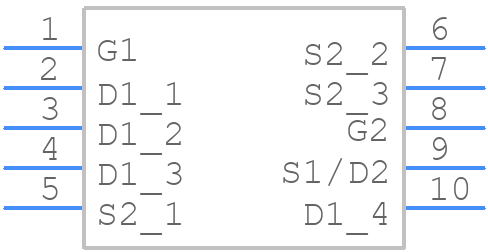

Use the download button to access the SIZ300DT-T1-GE3 schematic symbol, PCB footprint, and 3D model.
