SIZ328DT-T1-GE3 footprint, schematic symbol and 3D model by Vishay

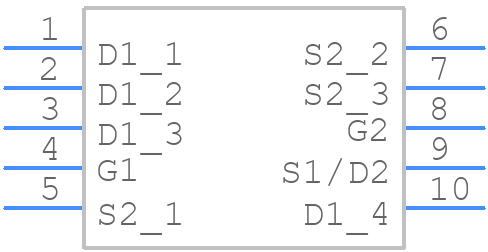

Symbol

click to zoom

PCB Footprints

SIZ328DT-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAIR® 3 x 3

click to zoom

3D Models

SIZ328DT-T1-GE3 - Vishay - 3D model - Other - PowerPAIR® 3 x 3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIZ328DT-T1-GE3
Part Number SIZ328DT-T1-GE3
Manufacturer Vishay
Pin Count 10
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - PowerPAIR® 3 x 3
Released Date Apr 1, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIZ328DT-T1-GE3 Details

Manufacturer Part Number:
SIZ328DT-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
Vishay Intertechnologies
YTEOL:
0
Avalanche Energy Rating (Eas):
2.5 mJ
Case Connection:
DRAIN SOURCE
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
25 V
Drain Current-Max (ID):
25.3 A
Drain-source On Resistance-Max:
0.025 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
20 pF
JESD-30 Code:
S-PDSO-N8
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
15 W
Pulsed Drain Current-Max (IDM):
40 A
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
Turn-off Time-Max (toff):
30 ns
Turn-on Time-Max (ton):
105 ns

SIZ328DT-T1-GE3 Frequently Asked Questions (FAQs)

The recommended storage temperature range for SIZ328DT-T1-GE3 is -40°C to 125°C, as per Vishay's general guidelines for semiconductor storage.
While the SIZ328DT-T1-GE3 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, as it may lead to moisture-related issues.
The maximum allowable voltage for the SIZ328DT-T1-GE3 is 1.5 times the rated voltage (30V) for a short duration (< 1 second), but it's recommended to operate within the rated voltage (20V) for reliable performance.
To prevent electrostatic discharge (ESD) damage, handle the SIZ328DT-T1-GE3 with ESD-protective equipment, such as wrist straps, mats, and bags. Follow standard ESD handling procedures to ensure device reliability.
While the SIZ328DT-T1-GE3 is designed for general-purpose use, it's not optimized for high-frequency applications (> 100 kHz). For high-frequency use, consider using a specialized Schottky diode or consult with Vishay's application engineers for guidance.

Trust Checks

Expert Contribution

System Verified

Community Approved

SIZ328DT-T1-GE3 Overview

Use the download button to access the SIZ328DT-T1-GE3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIZ32, or try a keyword search, such as Power Field-Effect Transistors
