SIZ340DT-T1-GE3 footprint, schematic symbol and 3D model by Vishay

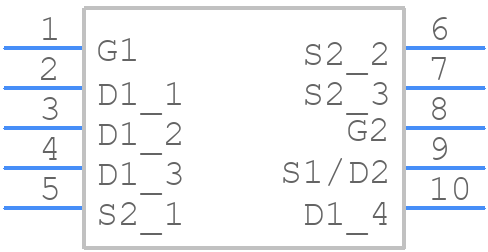

Symbol

click to zoom

PCB Footprints

SIZ340DT-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAIR® 3 x 3

click to zoom

3D Models

SIZ340DT-T1-GE3 - Vishay - 3D model - Other - PowerPAIR® 3 x 3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIZ340DT-T1-GE3
Part Number SIZ340DT-T1-GE3
Manufacturer Vishay
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PowerPAIR® 3 x 3
Released Date Nov 6, 2018
Last Modified Date Jul 11, 2023 1:40 PM UTC
Pinout / Pin List Click Here (Member Only)

SIZ340DT-T1-GE3 Details

Manufacturer Part Number:
SIZ340DT-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
3
Avalanche Energy Rating (Eas):
5 mJ
Case Connection:
DRAIN SOURCE
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
26.5 A
Drain-source On Resistance-Max:
0.0095 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Pulsed Drain Current-Max (IDM):
100 A
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

SIZ340DT-T1-GE3 Frequently Asked Questions (FAQs)

The recommended storage condition for SIZ340DT-T1-GE3 is in a dry, cool place, away from direct sunlight and moisture. The ideal storage temperature range is between 20°C to 30°C (68°F to 86°F) with a relative humidity of 50% to 60%.
While SIZ340DT-T1-GE3 is rated for operation up to 150°C (302°F), it's essential to consider the derating curves and thermal management to ensure reliable operation. Consult with a thermal expert or Vishay's application engineers for guidance on high-temperature applications.
To prevent electrostatic discharge (ESD) damage, handle SIZ340DT-T1-GE3 components in an ESD-protected environment. Wear an ESD wrist strap or use an ESD mat, and ensure all equipment and tools are properly grounded. Avoid touching the component pins or leads to prevent ESD damage.
The recommended soldering profile for SIZ340DT-T1-GE3 is a peak temperature of 260°C (500°F) for 10-15 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s). Ensure the soldering process is within the specified temperature range to prevent damage.
While SIZ340DT-T1-GE3 is designed to withstand normal vibrations, it's essential to consider the specific vibration profile and amplitude in your application. Consult with a mechanical engineer or Vishay's application engineers to determine the suitability of SIZ340DT-T1-GE3 in high-vibration environments.

Trust Checks

Expert Contribution

System Verified

Community Approved

SIZ340DT-T1-GE3 Overview

Use the download button to access the SIZ340DT-T1-GE3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIZ34, or try a keyword search, such as Power Field-Effect Transistors
