SIZ348DT-T1-GE3 - Vishay

Description: MOSFET 30V Vds 20V Vgs PowerPAIR 3 x 3

Download SIZ348DT-T1-GE3 Model

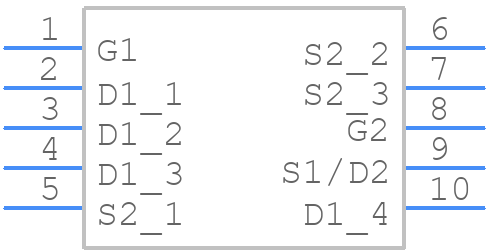

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SIZ348DT-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAIR® 3 x 3
click to zoom
3D Models
SIZ348DT-T1-GE3 - Vishay  - 3D model - Other - PowerPAIR® 3 x 3
click to zoom

SIZ348DT-T1-GE3 Details

  • Manufacturer Part Number:

    SIZ348DT-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.3

  • Avalanche Energy Rating (Eas):

    5 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.00712 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    40 pF

  • JESD-30 Code:

    S-PDSO-N8

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    16.7 W

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    60 ns

  • Turn-on Time-Max (ton):

    105 ns
