SJ-3566AN - Same Sky

Description: 3.5 mm Right-Angle, SPDT Switch, Stereo Audio Jack Connector

Download SJ-3566AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

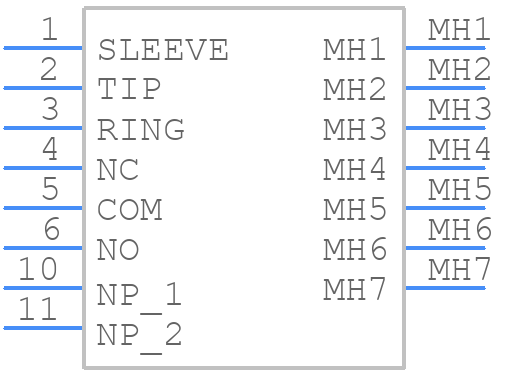

Symbol
SJ-3566AN - Same Sky - PCB symbol
click to zoom

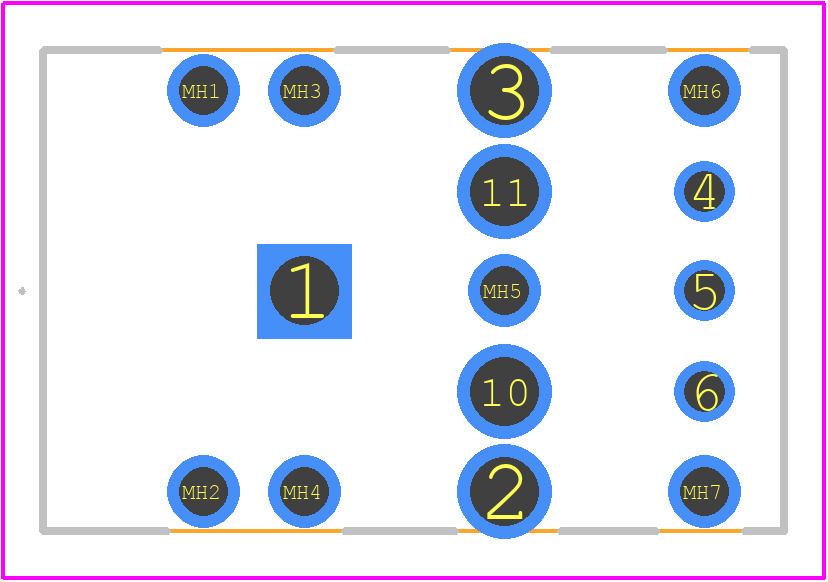

PCB Footprints
SJ-3566AN - Same Sky PCB footprint - Other - Other - SJ-3566AN-2
click to zoom
3D Models
SJ-3566AN - Same Sky - 3D model - Other - SJ-3566AN-2
click to zoom

SJ-3566AN Details

  • Manufacturer Part Number:

    SJ-3566AN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Same Sky

  • YTEOL:

    7

  • Additional Feature:

    LOW PROFILE

  • Audio Type:

    STEREO

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.728 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    3.5MM AUDIO

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    50 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    5000 Cycles

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    29.4 N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.091 inch

  • Termination Type:

    SOLDER

SJ-3566AN Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application note AN-103, which can be found on their website. It's essential to follow this layout to ensure proper thermal performance and to prevent damage to the component.
  • The SJ-3566AN has a high power density, and proper thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce thermal resistance. The datasheet provides thermal resistance values to help with thermal design.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the SJ-3566AN within a temperature range of 0°C to 70°C for optimal performance.
  • The SJ-3566AN is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with CUI Devices or perform additional testing to ensure the component's reliability and performance.
  • CUI Devices recommends following the JEDEC J-STD-020D.1 standard for soldering the SJ-3566AN. This standard provides guidelines for temperature, time, and other parameters to ensure reliable solder joints.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJ-3566AN Overview

Use the download button to access the SJ-3566AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJ-35, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
