SJ-63043H - Same Sky

SJ-63043H Frequently Asked Questions (FAQs)

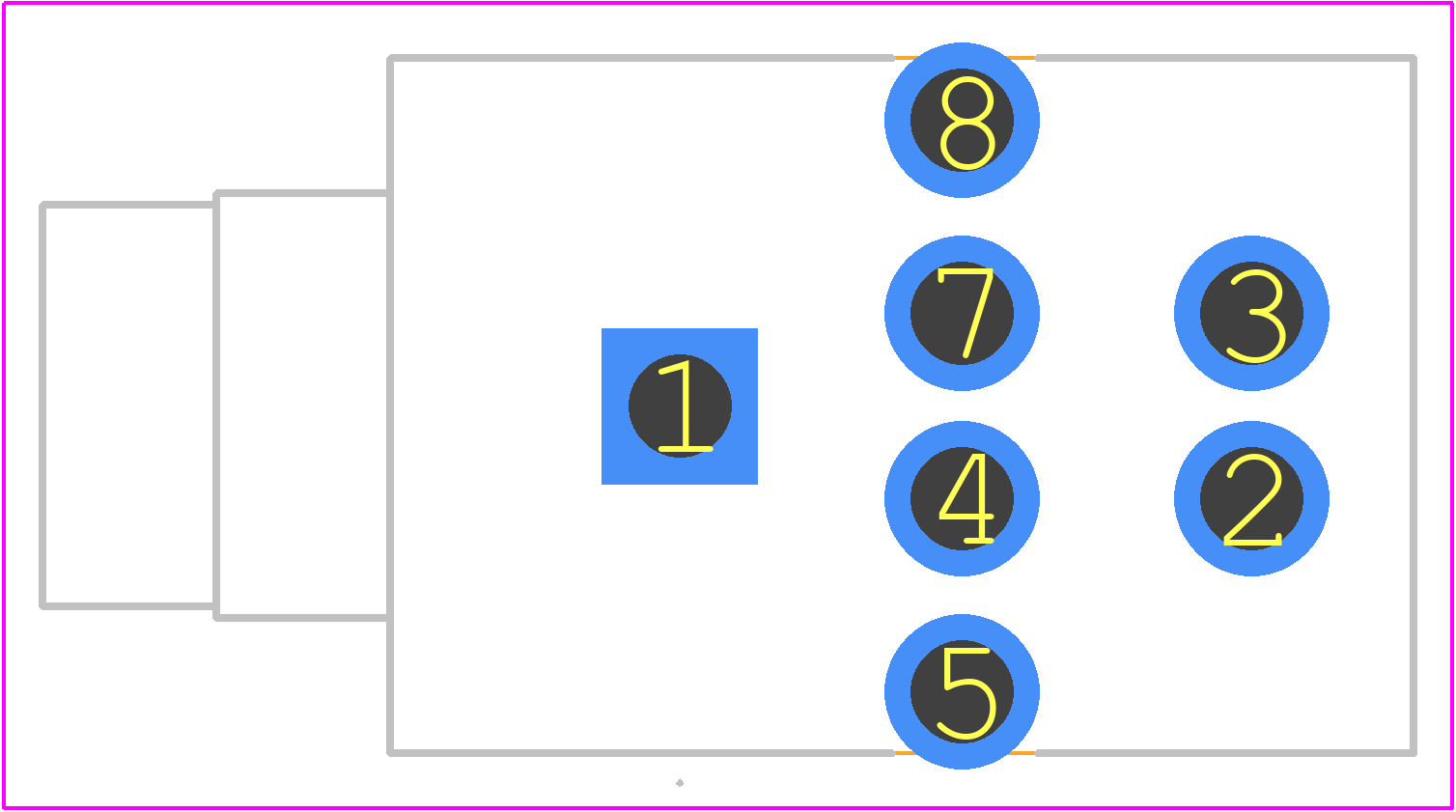

• What is the recommended PCB layout and land pattern for the SJ-63043H?
  CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and mechanical stability.
• How do I handle the thermal management of the SJ-63043H?
  The SJ-63043H has a high power density, so thermal management is crucial. Use a heat sink, thermal interface material, and ensure good airflow around the component. The datasheet provides thermal resistance values to help with thermal design.
• What is the recommended soldering process for the SJ-63043H?
  CUI Devices recommends following the JEDEC J-STD-020D.1 standard for soldering. The recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds. Use a solder with a melting point above 217°C (423°F).
• Can I use the SJ-63043H in a high-vibration environment?
  The SJ-63043H is designed to withstand moderate vibrations. However, for high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or adhesive, to ensure the component remains securely attached to the PCB.
• How do I troubleshoot issues with the SJ-63043H?
  Start by checking the power supply, signal integrity, and thermal management. Verify that the component is properly soldered and seated. Use oscilloscopes or logic analyzers to debug signal issues. Consult the datasheet and application notes for troubleshooting guidelines.
