SJ1-3535 footprint, schematic symbol and 3D model by Same Sky

Symbol

click to zoom

PCB Footprints

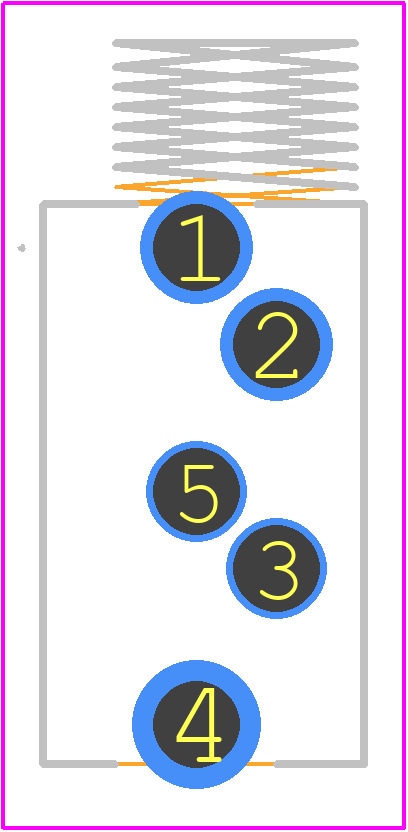

SJ1-3535 - Same Sky PCB footprint - Other - Other - SJ1-3535-2

click to zoom

3D Models

SJ1-3535 - Same Sky - 3D model - Other - SJ1-3535-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SJ1-3535
Part Number SJ1-3535
Manufacturer Same Sky
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - SJ1-3535-2
Released Date Jun 15, 2026
Last Modified Date Jun 15, 2026 1:47 PM UTC
Pinout / Pin List Click Here (Member Only)

SJ1-3535 Details

Manufacturer Part Number:
SJ1-3535
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Same Sky
Additional Feature:
LOW PROFILE
Body Breadth:
0.48 inch
Body Depth:
0.71 inch
Body Length:
0.32 inch
Body/Shell Style:
JACK
Configuration:
1X1 HORIZONTAL
Connector Type:
3.5MM AUDIO
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin (Sn)
Contact Material:
NOT APPLICABLE
Contact Resistance:
50 mΩ
DIN Conformance:
NO
Dielectric Withstanding Voltage:
500VAC V
Durability:
5000 Cycles
IEC Conformance:
NO
Insulation Resistance:
100000000 Ω
Insulator Color:
BLACK
JESD-609 Code:
e3
MIL Conformance:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Poles:
3
Number of Ports:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED KEY
Rated Current (Signal):
1 A
Terminal Length:
0.13 inch
Termination Type:
SOLDER

SJ1-3535 Frequently Asked Questions (FAQs)

A recommended PCB layout for the SJ1-3535 would be to keep the input and output traces separate, use a solid ground plane, and minimize the distance between the input and output pins to reduce EMI.
To ensure the SJ1-3535 operates within its specified temperature range, make sure to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources.
The maximum recommended input voltage for the SJ1-3535 is 5.5V, exceeding this voltage may damage the device.
Yes, the SJ1-3535 is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliable operation.
To troubleshoot issues with the SJ1-3535, check the input voltage, output voltage, and current consumption. Also, verify that the device is properly soldered and mounted, and that the PCB layout is correct.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SJ1-3535 Overview

Use the download button to access the SJ1-3535 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SJ1-3, or try a keyword search, such as Audio/RCA Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
