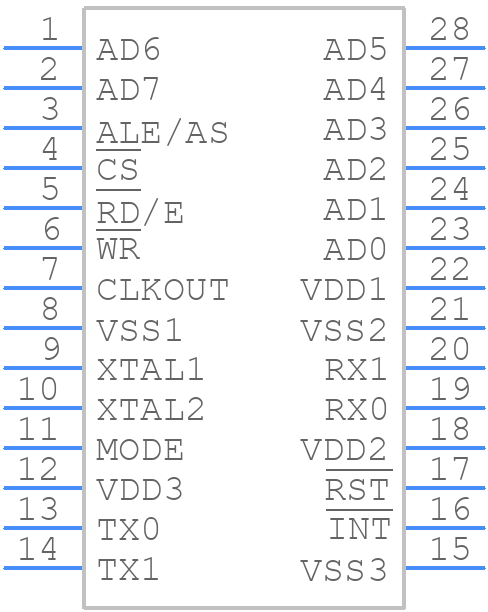

SJA1000T/N1 - NXP

SJA1000T/N1 Details

• Manufacturer Part Number:

  SJA1000T/N1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  7.50 MM, PLASTIC, SO-28

• Pin Count:

  28

• Similar Group:

  CT00113514521026

• ECCN Code:

  5A991

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Address Bus Width:

  8

• Boundary Scan:

  NO

• Bus Compatibility:

  CAN

• Clock Frequency-Max:

  24 MHz

• Communication Protocol:

  ASYNC, BIT; SYNC, BYTE; ETHERNET

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  1 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  17.9 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Serial I/Os:

  2

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
