SJA1124AHG/1Z - NXP

Description: Quad LIN Master IC with SPI interface, up to 20kBd per channel 24-VFQFN Exposed Pad

Download SJA1124AHG/1Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

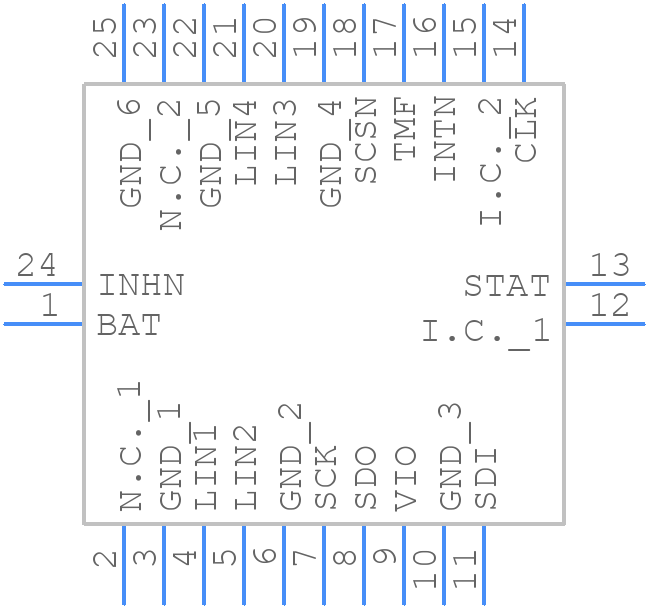

SJA1124AHG/1Z - NXP - PCB symbol
click to zoom
PCB Footprints
SJA1124AHG/1Z - NXP PCB footprint - Other - Other - DHVQFN24
click to zoom
3D Models
SJA1124AHG/1Z - NXP - 3D model - Other - DHVQFN24
click to zoom

SJA1124AHG/1Z Details

  • Manufacturer Part Number:

    SJA1124AHG/1Z

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJA1124AHG/1Z Overview

Use the download button to access the SJA1124AHG/1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJA11, or try a keyword search, such as Network Interfaces
