SJA1124AHG - NXP

Description: Quad LIN master transceiver with LIN master controller

Download SJA1124AHG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

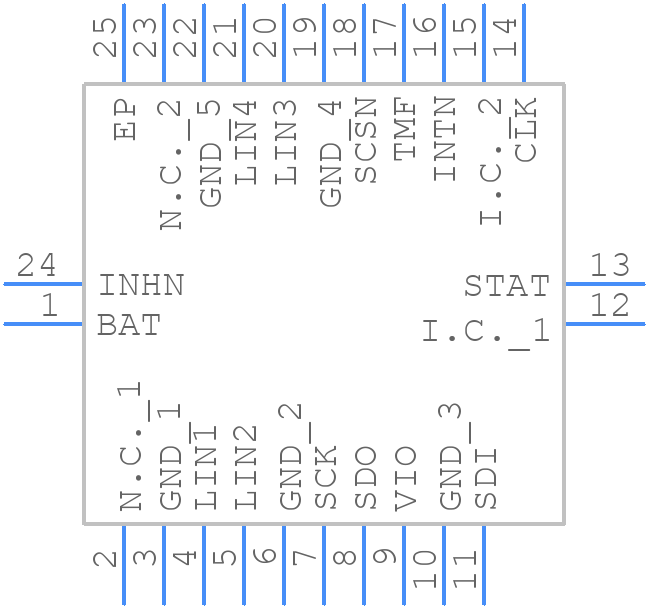

SJA1124AHG - NXP - PCB symbol
click to zoom
PCB Footprints
SJA1124AHG - NXP PCB footprint - Other - Other - SJA1124AHG-1
click to zoom
3D Models
SJA1124AHG - NXP - 3D model - Other - SJA1124AHG-1
click to zoom

SJA1124AHG Details

  • Manufacturer Part Number:

    SJA1124AHG

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6.96

  • JESD-30 Code:

    R-PQCC-N24

  • Length:

    5.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

SJA1124AHG Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the SJA1124AHG application note (AN12247) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The SJA1124AHG is a flexible automotive Ethernet switch that can be configured for various protocols such as AVB, TSN, and others. NXP provides software development kits (SDKs) and configuration tools that allow engineers to customize the switch for their specific use case.
  • The SJA1124AHG supports cable lengths up to 100 meters, as specified in the IEEE 802.3bp standard for automotive Ethernet. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • The SJA1124AHG has built-in packet filtering and prioritization capabilities that allow engineers to configure the switch to prioritize critical traffic and filter out unwanted packets. This is achieved through the use of access control lists (ACLs) and priority queuing mechanisms.
  • Yes, the SJA1124AHG is designed to meet the requirements of automotive safety standards such as ISO 26262. NXP provides safety manuals and FMEDA reports to support the integration of the SJA1124AHG into safety-critical systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SJA1124AHG Overview

Use the download button to access the SJA1124AHG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SJA11, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
