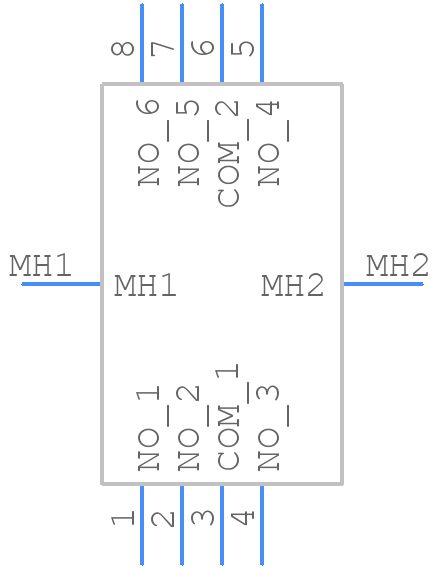

Symbol

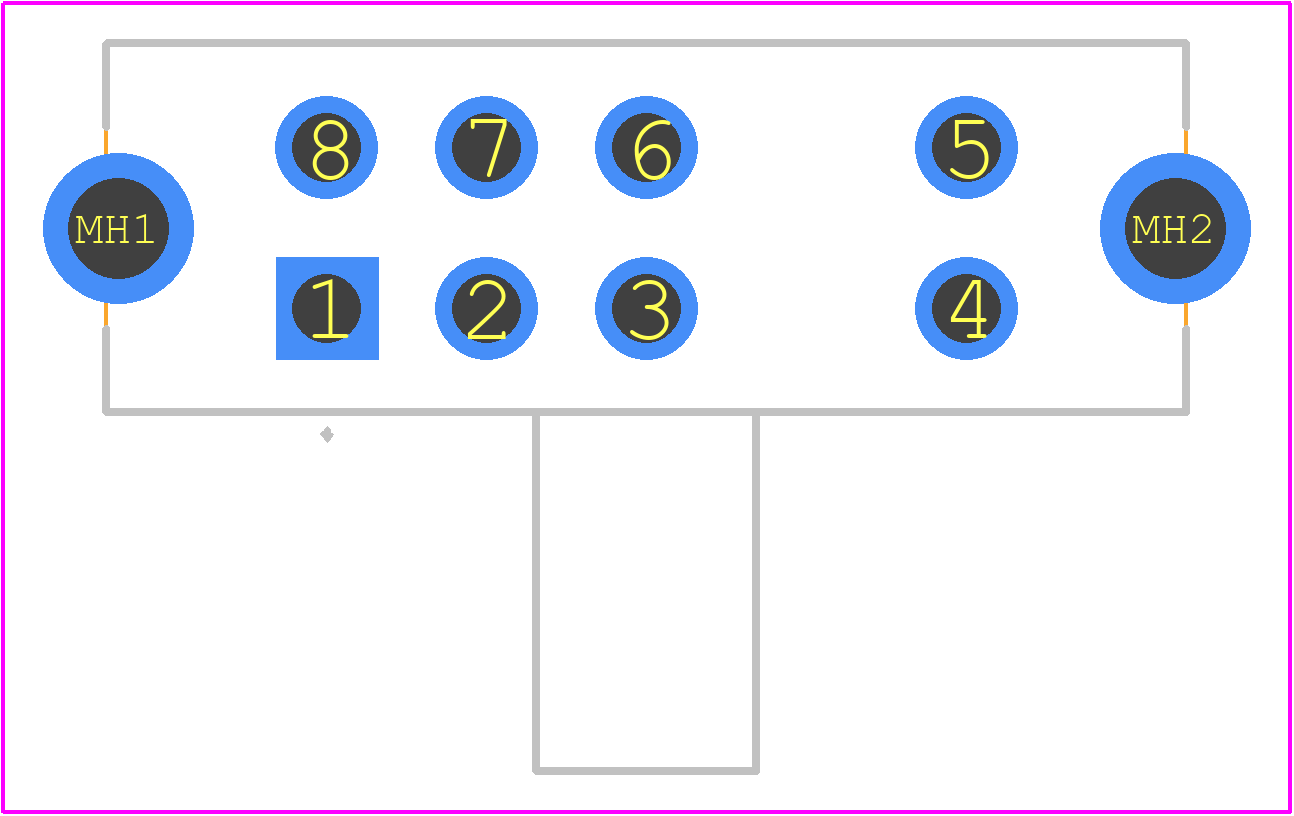

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SK23H11G9S
- Part Number SK23H11G9S
- Manufacturer LITTELFUSE
- Pin Count 10
- Part Category Switch
- Package Category Other
- Footprint Name Other - SK23H11G9S-1
- Released Date Nov 15, 2021
- Last Modified Date Apr 10, 2026 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
SK23H11G9S Details
-
Manufacturer Part Number:
SK23H11G9S
-
Manufacturer:
Littelfuse Inc
Trust Checks
Community Provided
System Verified
Community Approved
SK23H11G9S Overview
Use the download button to access the SK23H11G9S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SK23H,
or try a keyword search, such as Rectifier Diodes
