SK50GARL065 - Semikron

Description: POWER IGBT TRANSISTOR

Download SK50GARL065 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

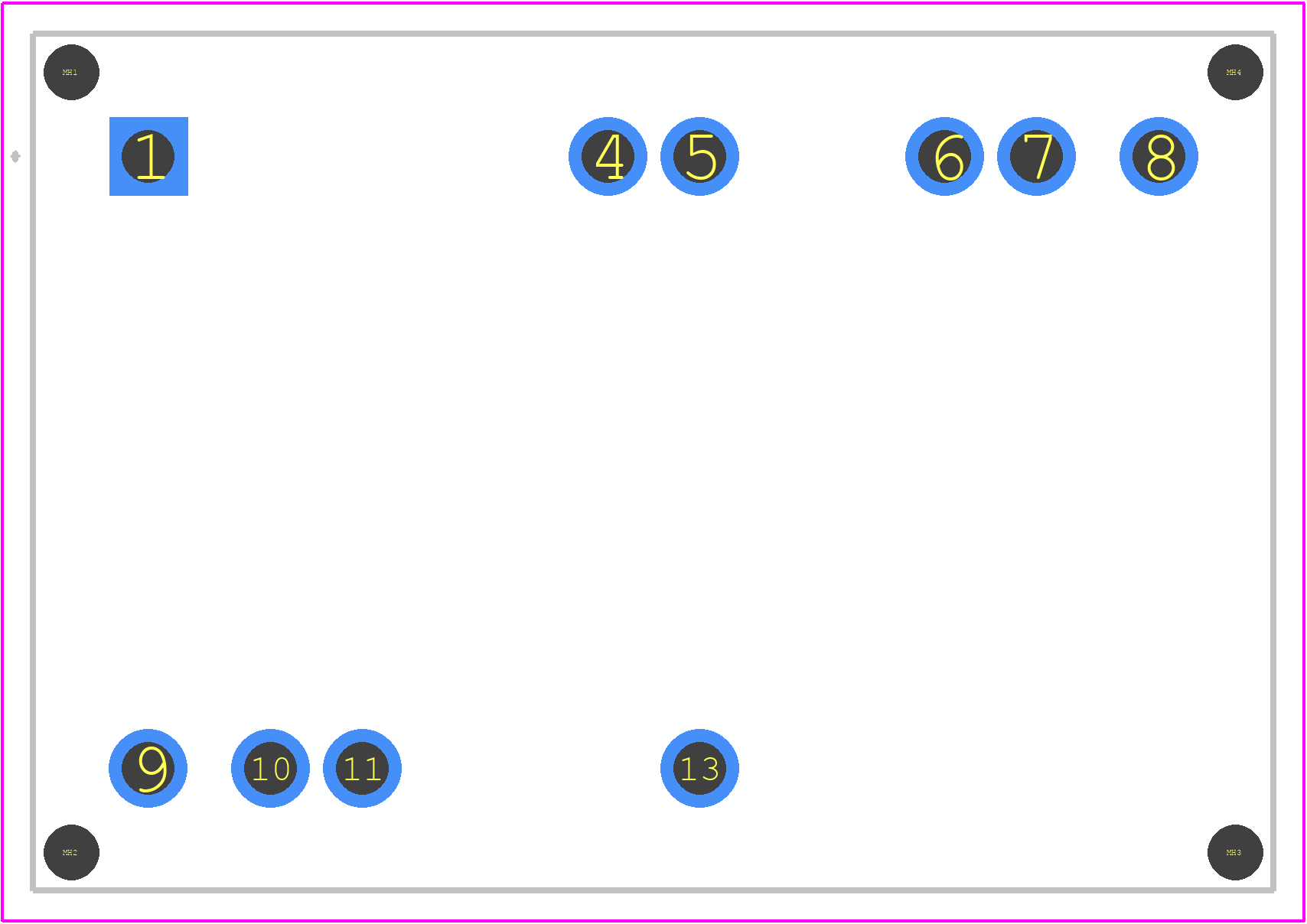

SK50GARL065 - Semikron PCB footprint - Other - Other - SK50GARL065-2
click to zoom
3D Models
SK50GARL065 - Semikron  - 3D model - Other - SK50GARL065-2
click to zoom

SK50GARL065 Details

  • Manufacturer Part Number:

    SK50GARL065

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Pin Count:

    10

  • Manufacturer Package Code:

    CASE T31

  • ECCN Code:

    EAR99

  • Manufacturer:

    SEMIKRON

  • YTEOL:

    2

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    54 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X7

  • JESD-609 Code:

    e3/e4

  • Number of Elements:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN/SILVER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    240 ns

  • Turn-on Time-Nom (ton):

    107 ns

  • VCEsat-Max:

    2 V

SK50GARL065 Frequently Asked Questions (FAQs)

  • The recommended gate resistor value for SK50GARL065 is typically between 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • To ensure proper thermal management for SK50GARL065, it is recommended to use a heat sink with a thermal resistance of less than 1°C/W, and to apply a thin layer of thermal interface material (TIM) between the device and the heat sink.
  • The maximum allowed voltage overshoot for SK50GARL065 is typically 10% to 20% above the maximum rated voltage, depending on the specific application and operating conditions.
  • Yes, SK50GARL065 can be used in a parallel configuration, but it is recommended to ensure that the devices are matched in terms of their electrical characteristics, and that the gate drive signals are properly synchronized to avoid shoot-through currents.
  • The recommended dead time for SK50GARL065 in a half-bridge configuration is typically between 100 ns to 500 ns, depending on the specific application and switching frequency.
