SK50GD066ET footprint, schematic symbol and 3D model by Semikron

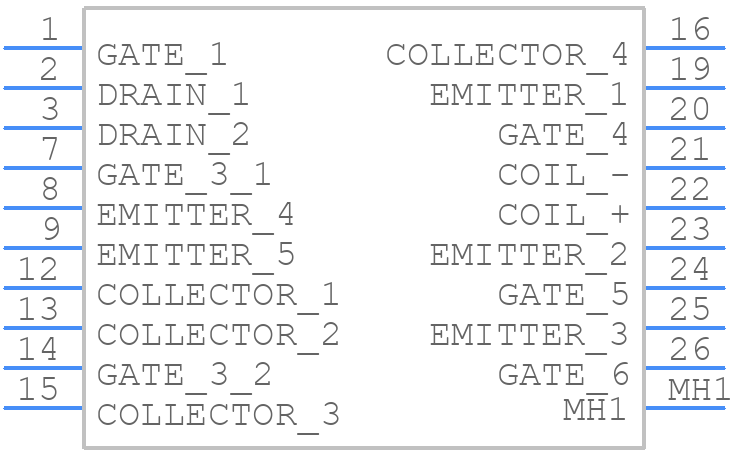

Symbol

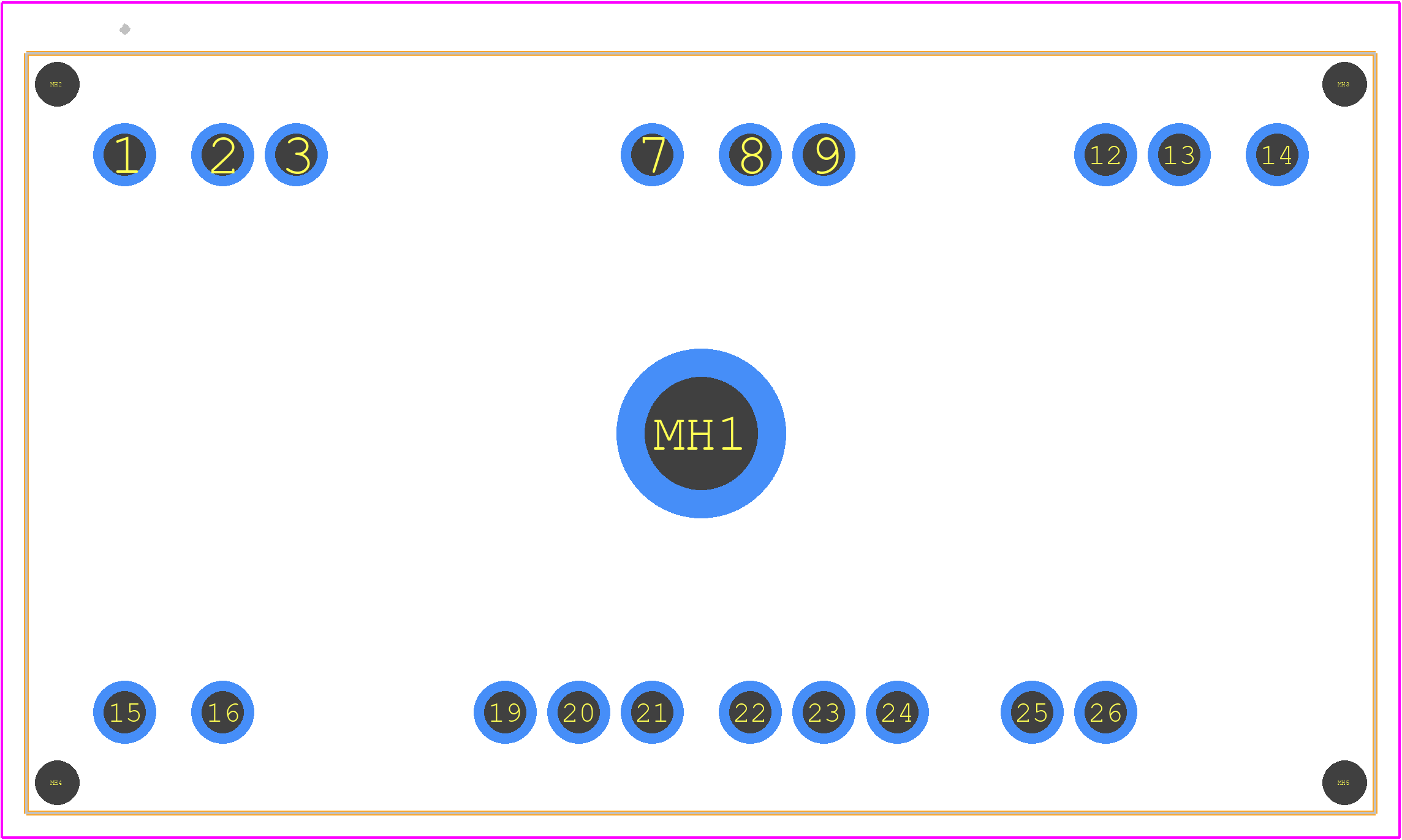

PCB Footprints

3D Models

SK50GD066ET Details

The maximum junction temperature of the SK50GD066ET is 150°C, but it's recommended to keep it below 125°C for reliable operation.
Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 1.5 K/W, and ensuring good thermal contact between the device and the heat sink. Additionally, forced air cooling can be used to improve heat dissipation.
The recommended gate resistance for the SK50GD066ET is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
Yes, the SK50GD066ET can be used in a parallel configuration, but it's essential to ensure that the devices are properly matched and that the gate drive circuitry is designed to handle the increased current.
The maximum dv/dt rating of the SK50GD066ET is 10 kV/μs, but it's recommended to limit dv/dt to 5 kV/μs or less to ensure reliable operation.

Expert Contribution

System Verified

Community Approved

Use the download button to access the SK50GD066ET schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SK50G, or try a keyword search, such as IGBTs
