A recommended PCB layout for optimal thermal performance would be to have a solid copper plane on the bottom layer of the PCB, directly underneath the SK610L-TP, and to use thermal vias to connect the top and bottom layers. This will help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate airflow, using a heat sink if necessary, and ensuring that the device is operated within its specified temperature range.
The maximum allowable voltage derating for the SK610L-TP is typically 80% of the maximum rated voltage. However, it's recommended to consult the manufacturer's application notes or contact their technical support for specific guidance on voltage derating.
Yes, the SK610L-TP can be used in a switching regulator application. However, it's crucial to ensure that the device is operated within its specified switching frequency range and that the circuit is designed to minimize electromagnetic interference (EMI).
To prevent electrostatic discharge (ESD) damage, it's recommended to follow standard ESD protection practices, such as using an ESD wrist strap, ESD mat, or ESD bag, and to handle the devices in a static-controlled environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SK610L-TP Overview

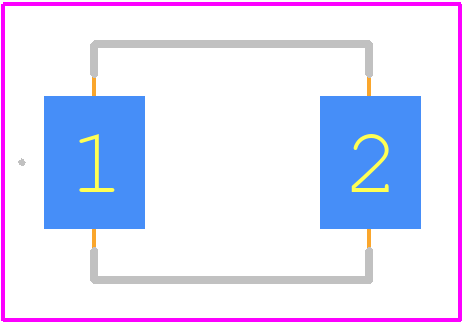

Use the download button to access the SK610L-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SK610,
or try a keyword search, such as Rectifier Diodes
