SK70KQ12 - Semikron

Description: Antiparallel Thyristor Module

Download SK70KQ12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

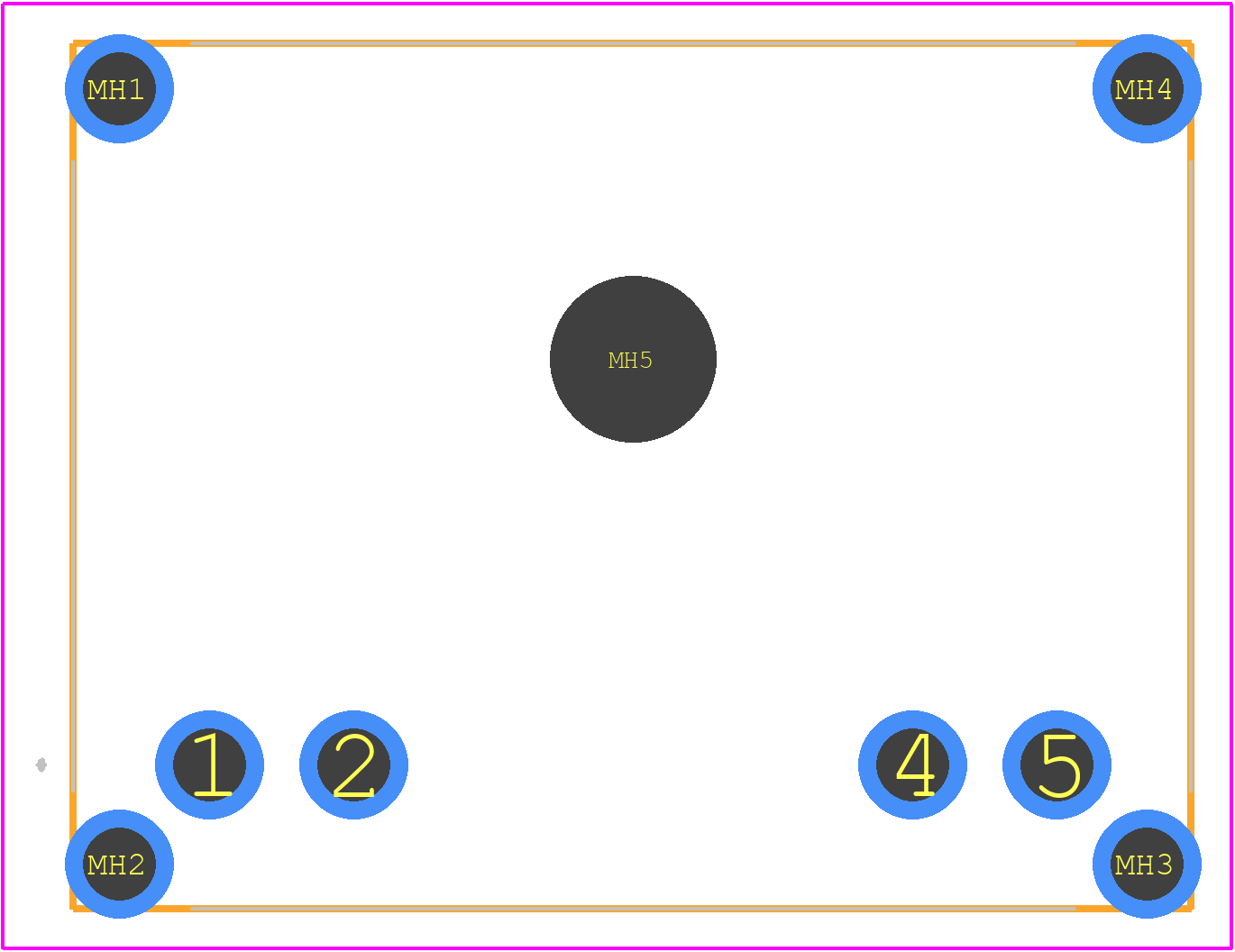

SK70KQ12 - Semikron PCB footprint - Other - Other - SK70KQ12-2
click to zoom
3D Models
SK70KQ12 - Semikron  - 3D model - Other - SK70KQ12-2
click to zoom

SK70KQ12 Details

  • Manufacturer Part Number:

    SK70KQ12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    5

  • Manufacturer Package Code:

    CASE T 1

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    SEMIKRON

  • YTEOL:

    7.02

  • Case Connection:

    ISOLATED

  • Configuration:

    ANTI-PARALLEL, 2 ELEMENTS

  • DC Gate Trigger Current-Max:

    100 mA

  • JESD-30 Code:

    R-XUFM-X5

  • JESD-609 Code:

    e2

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    72 A

  • Reference Standard:

    UL RECOGNIZED

  • Repetitive Peak Off-state Voltage:

    1200 V

  • Repetitive Peak Reverse Voltage:

    1200 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Trigger Device Type:

    SCR

SK70KQ12 Frequently Asked Questions (FAQs)

  • The maximum allowed voltage imbalance is typically ±10% of the nominal DC link voltage. Exceeding this limit can lead to uneven current sharing and reduced module lifetime.
  • Proper thermal management involves ensuring good thermal contact between the module and the heat sink, using a suitable thermal interface material, and maintaining a maximum junction temperature of 150°C. Additionally, ensure good airflow around the heat sink and avoid hot spots.
  • The recommended gate resistor value is typically between 10 ohms and 20 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI) but may increase switching losses.
  • Yes, the SK70KQ12 can be used in a parallel configuration to increase power handling. However, it's essential to ensure that the modules are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing and oscillations.
  • The maximum allowed dv/dt for the SK70KQ12 is typically around 5 kV/μs to 10 kV/μs, depending on the specific application and operating conditions. Exceeding this limit can lead to voltage overshoots and reduced module lifetime.
