Part Image

SK84-3G - Diotec

Description: Schottky Diodes & Rectifiers Schottky, SMC, 40V, 8A

Download SK84-3G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SK84-3G - Diotec - PCB symbol
click to zoom
PCB Footprints

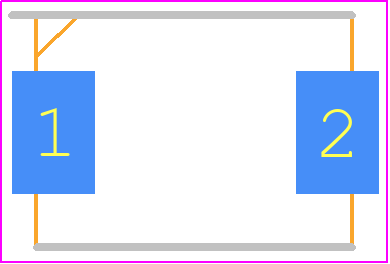

SK84-3G - Diotec PCB footprint - Diodes Moulded - Diodes Moulded - DO-214AB
click to zoom
3D Models
SK84-3G - Diotec - 3D model - Diodes Moulded - DO-214AB
click to zoom

SK84-3G Details

  • Manufacturer Part Number:

    SK84-3G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Date Of Intro:

    2018-04-30

  • Manufacturer:

    Diotec Semiconductor AG

  • YTEOL:

    6.12

  • Additional Feature:

    FREE WHEELING DIODE

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.5 V

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Reverse Current-Max:

    100 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SK84-3G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Implement a heat sink or a thermal interface material (TIM) to reduce the thermal resistance between the device and the heat sink. Ensure good airflow and avoid blocking the airflow around the device.
  • Handle the device by the body, avoiding touching the pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions.
  • Yes, the SK84-3G is suitable for high-reliability applications. However, it's essential to follow the recommended operating conditions, and consider additional testing and validation for your specific application.
  • Use a systematic approach to troubleshoot: check the power supply, verify the input signals, and monitor the output. Use oscilloscopes or logic analyzers to analyze the signals. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SK84-3G Overview

Use the download button to access the SK84-3G schematic symbol, PCB footprint, and 3D model.
