Skyworks provides a recommended PCB layout and land pattern in their application note (AN203315) for the SKY13492-21. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and prevent thermal issues.
The biasing network should be optimized for the specific application and frequency range. Skyworks recommends using their simulation models and design tools, such as the Skyworks' Switch Model Simulator, to optimize the biasing network and ensure proper operation.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Skyworks recommends derating the device's performance at higher temperatures. It's essential to consider thermal management and heat dissipation in the system design to ensure reliable operation.
To ensure EMC and EMI compliance, follow proper PCB design practices, such as using shielding, grounding, and filtering. Additionally, consider using Skyworks' EMI filters and shielding products in conjunction with the SKY13492-21. Consult with Skyworks' application engineers for specific guidance.
Handle the SKY13492-21 with care to prevent damage from electrostatic discharge (ESD), mechanical stress, and moisture. Follow standard ESD handling procedures, store the devices in their original packaging, and avoid exposing them to extreme temperatures or humidity.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY13492-21 Overview

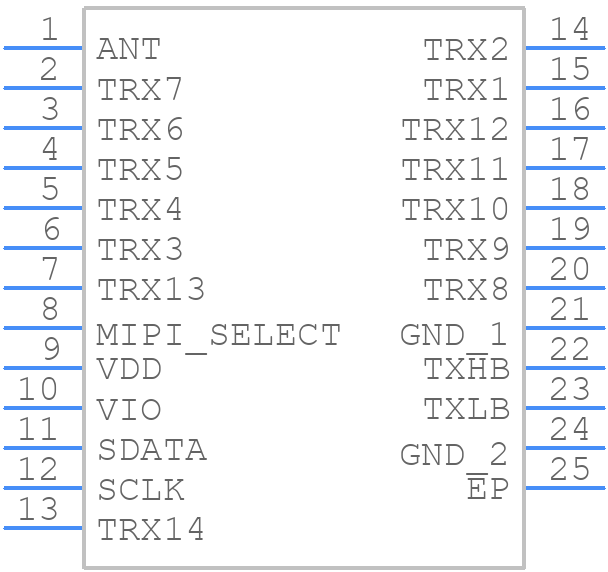

Use the download button to access the SKY13492-21 schematic symbol, PCB footprint, and 3D model.
