The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and ensuring good thermal conductivity. A thermal pad on the bottom of the device should be connected to a thermal relief pattern on the PCB. A heat sink or thermal interface material can be used to improve heat dissipation.
Optimizing the input and output matching networks involves using a combination of simulation tools and empirical methods. Start by using simulation software to model the device and optimize the matching networks for maximum power transfer. Then, use empirical methods to fine-tune the matching networks based on measured performance.
The recommended soldering technique is reflow soldering with a peak temperature of 260°C. The device should be handled with care to prevent damage to the sensitive RF pins. A no-clean or water-soluble flux should be used, and the device should be cleaned after soldering to prevent flux residue buildup.
Ensure the device operates within the specified operating conditions by monitoring the voltage, current, and temperature. Use voltage regulators and filters to maintain a stable voltage supply, and ensure the device is operated within the specified temperature range. Monitor the device's current consumption and adjust the biasing as needed.
The SKY65336-11 is a sensitive RF device and requires proper ESD protection and handling precautions. Handle the device by the body, avoid touching the pins, and use an ESD wrist strap or mat. Use ESD-protected packaging and storage materials, and ensure the device is properly grounded during handling and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY65336-11 Overview

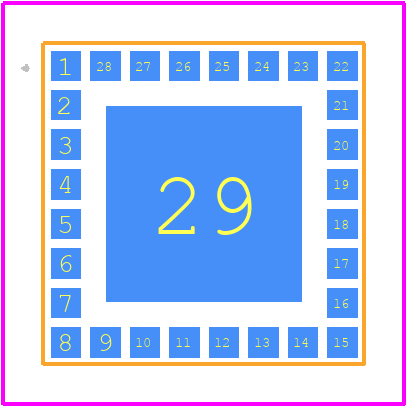

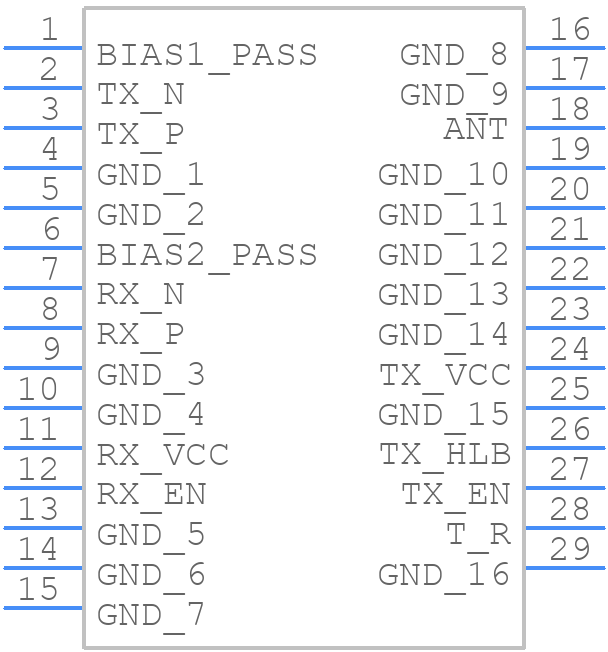

Use the download button to access the SKY65336-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY65,
or try a keyword search, such as Other RF/Microwave Devices
