A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad on the bottom of the device and connect it to a thermal plane on the PCB.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a pi-network topology and adjust the component values to achieve the desired impedance match.
Operate the device within the recommended temperature range of -40°C to 85°C. Ensure a stable power supply and avoid exceeding the maximum ratings for voltage, current, and power dissipation.
Use a systematic approach to troubleshoot issues. Check the PCB layout, component values, and soldering quality. Verify the power supply and biasing conditions. Use simulation tools and measurement equipment to identify and isolate the problem.
Yes, handle the device with ESD-protective equipment and follow proper handling procedures. Ensure the device is properly grounded during assembly and testing. Use ESD-protective packaging and storage materials.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

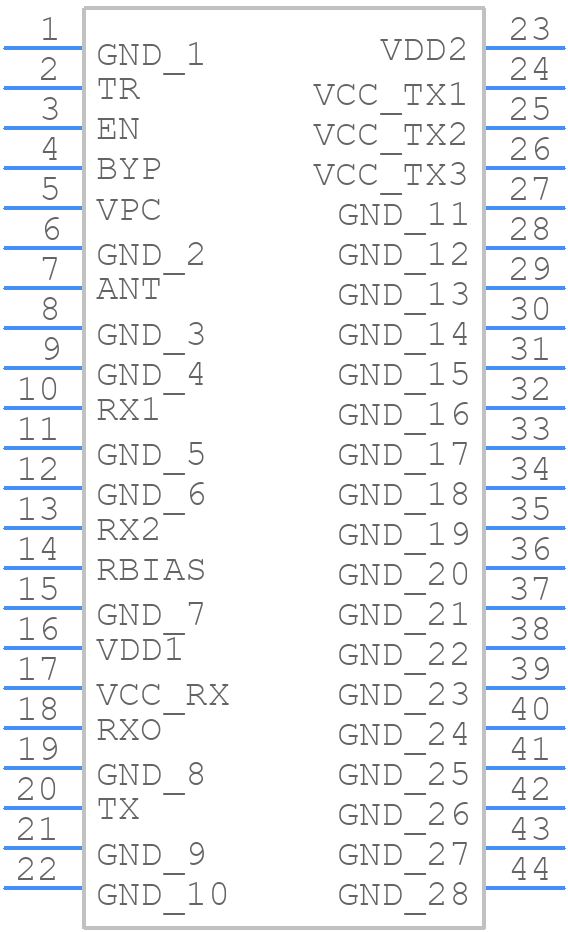

SKY65364-21 Overview
Use the download button to access the SKY65364-21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY65,
or try a keyword search, such as Other RF/Microwave Devices
