Skyworks provides a recommended PCB layout and land pattern in their application note AN302A, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The biasing network should be designed to provide a stable voltage supply to the device. Skyworks recommends using a resistive divider network with a bypass capacitor to filter out noise and ensure a stable voltage supply. The values of the resistors and capacitors can be calculated based on the specific application requirements.
The maximum power handling capability of the SKY65535-11 is not explicitly stated in the datasheet. However, according to Skyworks' application note AN302A, the device can handle up to 2W of input power. It's essential to ensure that the device is operated within its recommended power handling capability to prevent damage or degradation.
Troubleshooting common issues with the SKY65535-11 requires a systematic approach. Skyworks recommends checking the PCB layout, biasing network, and input/output matching networks for any errors or inconsistencies. Additionally, measuring the device's S-parameters and comparing them to the datasheet specifications can help identify the root cause of the issue.
Yes, the SKY65535-11 has a maximum junction temperature of 150°C. Skyworks recommends using a thermal pad or heat sink to dissipate heat and ensure that the device operates within its recommended temperature range. The PCB layout should also be designed to minimize thermal resistance and ensure good heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY65535-11 Overview

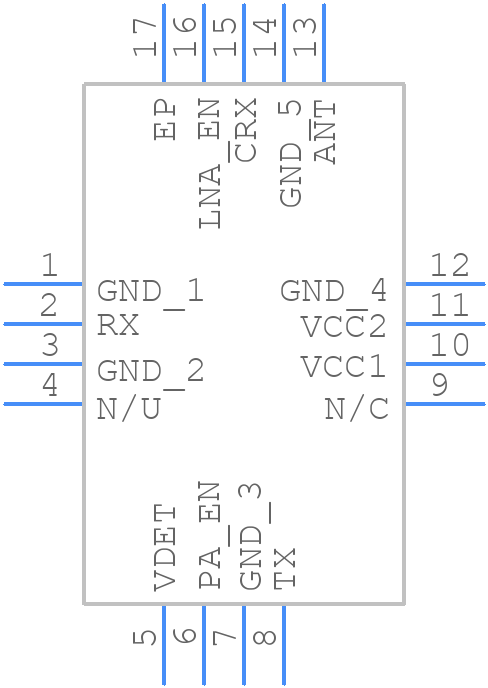

Use the download button to access the SKY65535-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY65,
or try a keyword search, such as Other Telecom ICs
