The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
Optimization involves using a combination of simulation tools and empirical methods to find the optimal component values and layout for the input and output matching networks. Skyworks provides a reference design and simulation models to aid in this process.
Follow the standard SMT soldering procedures, using a peak reflow temperature of 260°C. Handle the device by the package body, avoiding touching the pins or die. Use an anti-static wrist strap and work surface to prevent ESD damage.
Use a combination of signal integrity analysis, spectrum analysis, and debugging techniques such as probing and signal injection to identify the root cause of the issue. Consult the Skyworks application note and technical support resources for guidance.
The SKY65724-11 has undergone rigorous qualification tests, including temperature cycling, humidity, and vibration testing, as well as accelerated life testing. The device is qualified to the relevant industry standards, such as JEDEC and AEC-Q100.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY65724-11 Overview

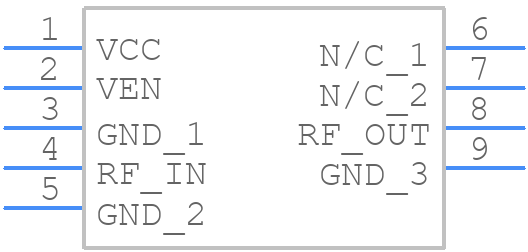

Use the download button to access the SKY65724-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY65,
or try a keyword search, such as Other RF/Microwave Devices
