A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad on the bottom of the device and connect it to a thermal plane on the PCB.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a pi-network topology and optimize component values using a genetic algorithm or gradient-based optimization.
Operate the device within the recommended temperature range of -40°C to 85°C. Ensure a maximum junction temperature of 150°C and avoid exceeding the maximum ratings for voltage, current, and power dissipation.
Use a combination of simulation tools, oscilloscopes, and spectrum analyzers to troubleshoot issues. Check for proper PCB layout, decoupling, and thermal management. Consult the application notes and seek support from Skyworks Solutions Inc. if necessary.
Handle the device with ESD-protective equipment and follow proper handling procedures. Ensure the device is stored in an ESD-protective package and avoid touching the device pins or exposed die.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66013-11 Overview

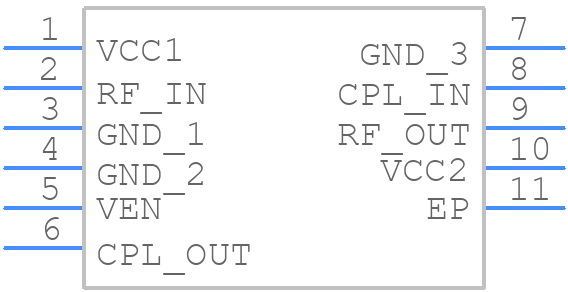

Use the download button to access the SKY66013-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
