SKY66289-11 Frequently Asked Questions (FAQs)

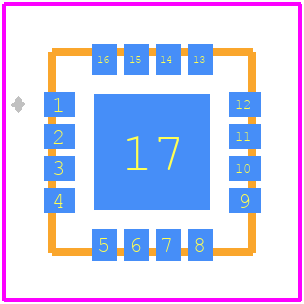

• What is the recommended PCB layout and thermal management for optimal performance?
  The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
• How do I optimize the input and output matching networks for maximum power transfer?
  Optimize the input and output matching networks by using a Smith chart or simulation tools like ADS or AWR to achieve a conjugate match. This ensures maximum power transfer and minimizes reflections.
• What are the recommended settings for the bias voltage and current to achieve optimal performance?
  The recommended bias voltage is 3.3V, and the recommended bias current is 100mA. However, the optimal bias settings may vary depending on the specific application and operating conditions.
• How do I ensure the device meets the required linearity and spectral mask requirements?
  Ensure the device meets the required linearity and spectral mask requirements by optimizing the bias settings, input power, and output matching network. Additionally, use digital pre-distortion or analog pre-distortion techniques to improve linearity.
• What are the reliability and qualification tests that the SKY66289-11 has undergone?
  The SKY66289-11 has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing, to ensure compliance with industry standards and customer requirements.
