The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
Use simulation tools like ADS or AWR to model the device and optimize the input and output matching networks for your specific frequency band, impedance, and power requirements. Consider using a 4-port network analyzer to measure the device's S-parameters.
The recommended bias voltage is typically between 3.3V to 5V, and the bias current should be set to the minimum required for the application. Consult the datasheet for specific recommendations and consider using a voltage regulator to ensure stable biasing.
Monitor the device's temperature, voltage, and current to ensure they are within the recommended specifications. Use thermal monitoring and protection circuits to prevent overheating, and implement over-voltage and over-current protection to prevent damage.
Handle the device with ESD-protective equipment, and follow proper handling and storage procedures to prevent ESD damage. The device has built-in ESD protection, but it's still important to follow proper handling procedures to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66295-11 Overview

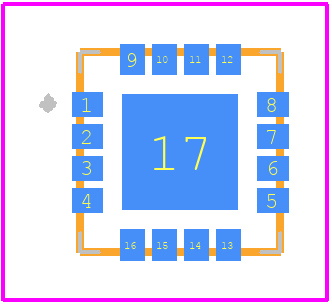

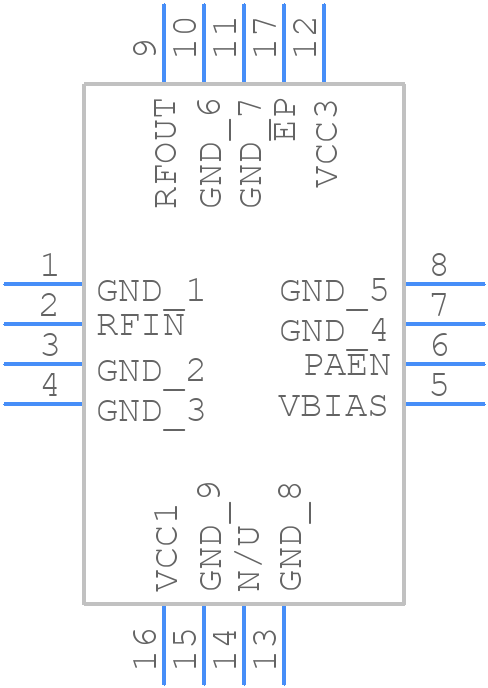

Use the download button to access the SKY66295-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
