Skyworks provides a recommended PCB layout and land pattern in their application note (AN203883) for the SKY66299-11. It's essential to follow these guidelines to ensure optimal performance, minimize parasitics, and reduce electromagnetic interference (EMI).
The biasing network should be optimized for the specific application and operating conditions. Skyworks recommends using their simulation models and design tools, such as the Skyworks Advanced Design System (ADS) model, to optimize the biasing network for the best possible linearity and efficiency.
The SKY66299-11 has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal vias, and thermal interface materials. Skyworks provides thermal resistance (RθJA) and thermal impedance (ZθJA) data in the datasheet to aid in thermal design.
Skyworks provides troubleshooting guides and application notes that can help identify and resolve common issues. Additionally, their technical support team is available to assist with design-related questions and issues. It's also recommended to perform thorough simulation and testing to identify potential issues early in the design process.
Yes, the SKY66299-11 has internal ESD protection, but it's still essential to follow proper ESD handling and protection procedures during assembly and testing. Skyworks recommends following their ESD handling guidelines and using ESD-protected equipment to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66299-11 Overview

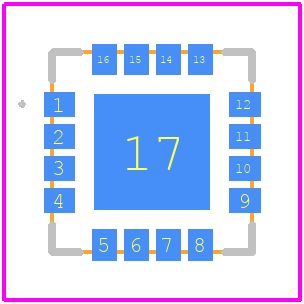

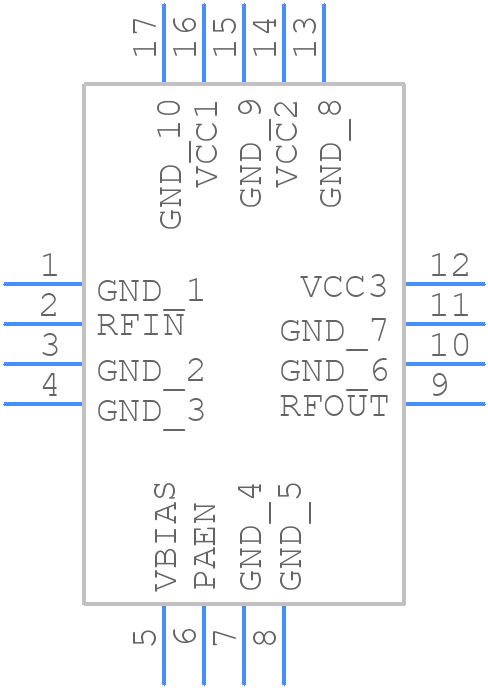

Use the download button to access the SKY66299-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
