The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using thermal vias and a heat sink to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a combination of simulation tools and empirical methods. Use a 50-ohm system impedance and tune the matching networks for maximum power transfer and minimum reflection coefficient.
The recommended bias voltage is 3.3V to 5V, and the recommended bias current is 100mA to 200mA. However, the optimal bias settings may vary depending on the specific application and operating conditions.
Ensure the device meets the required EMC and EMI standards by following the recommended PCB layout and design guidelines, using shielding and filtering components, and performing thorough testing and certification.
The SKY66407-11 has a high reliability rating, with a mean time to failure (MTTF) of over 100,000 hours. It also meets the quality standards of Skyworks Solutions Inc, which includes rigorous testing and inspection procedures. Compared to other similar devices, the SKY66407-11 has a higher power handling capability and a more compact package.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66407-11 Overview

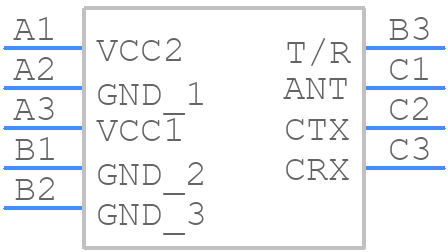

Use the download button to access the SKY66407-11 schematic symbol, PCB footprint, and 3D model.
