The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a 4-port network analyzer to measure the device's S-parameters and then use a circuit simulator to optimize the matching networks.
The recommended bias voltage is typically between 3.3V to 5V, and the bias current should be set to the minimum required for the application. Consult the datasheet for specific recommendations and consider using a voltage regulator to ensure a stable bias supply.
Monitor the device's junction temperature, output power, and input voltage to ensure they are within the recommended specifications. Use thermal monitoring and protection circuits to prevent overheating, and implement over-voltage protection to prevent damage from excessive input voltage.
Follow standard ESD protection procedures, such as using an ESD wrist strap, ESD-safe work surfaces, and ESD-protected packaging. Handle the devices by the body, avoid touching the pins, and use anti-static bags or containers for storage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SKY72310-11 Overview

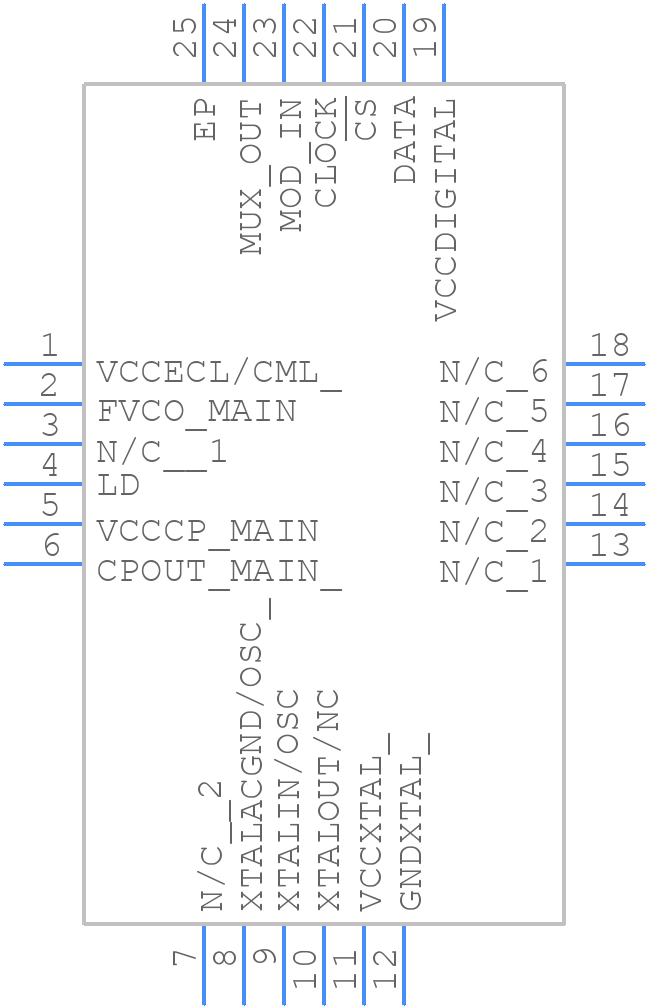

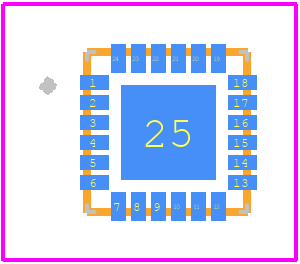

Use the download button to access the SKY72310-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY72,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
