A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad on the bottom of the device and connect it to a thermal plane on the PCB.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a pi-network topology and adjusting the component values to achieve the desired impedance match.
Operate the device within the recommended temperature range of -40°C to 85°C. Ensure a maximum junction temperature of 150°C and avoid exceeding the maximum ratings for voltage, current, and power dissipation.
Use a systematic approach to troubleshoot issues. Check the PCB layout, component values, and soldering quality. Verify the input and output impedance matches, and ensure proper decoupling and filtering. Consult the datasheet and application notes for guidance.
Handle the device with ESD-protective equipment and follow proper handling procedures. Ensure the device is stored in an ESD-protective package, and use a wrist strap or mat when handling the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKYA21002 Overview

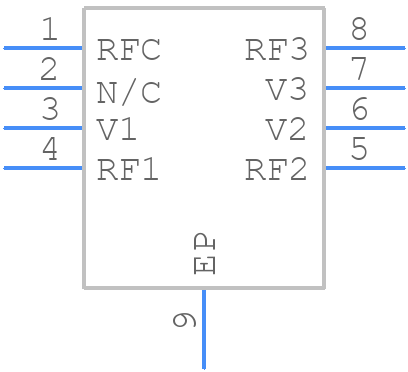

Use the download button to access the SKYA21002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKYA2,
or try a keyword search, such as RF/Microwave Switches
