The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a combination of simulation tools and empirical methods. Start with a theoretical match using a Smith chart, then iterate with physical prototypes to achieve the best possible match.
The recommended bias voltage is 3.3V, and the recommended bias current is 100mA. However, the optimal bias settings may vary depending on the specific application and operating conditions.
Ensure the device meets the required linearity and spectral purity specifications by optimizing the input power, bias voltage, and output load. Additionally, use filtering and shielding to minimize external interference.
The SKYA21013 is designed to meet high-reliability standards, with a typical MTBF of 100 million hours. However, the actual reliability and MTBF will depend on the specific application, operating conditions, and manufacturing quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKYA21013 Overview

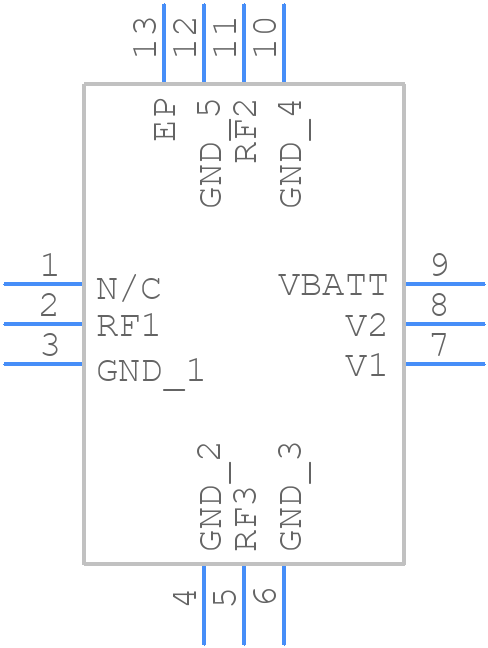

Use the download button to access the SKYA21013 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKYA2,
or try a keyword search, such as RF/Microwave Switches
