- Part Number SKYA21062
- Manufacturer Skyworks
- Pin Count 13
- Part Category Switch
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - SKYA21062
- Released Date Sep 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SKYA21062 Details
-
Manufacturer Part Number:
SKYA21062
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-12
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Date Of Intro:
2017-07-12
-
Manufacturer:
Skyworks Solutions Inc
-
YTEOL:
8
-
Additional Feature:
HIGH ISOLATION
-
Characteristic Impedance:
50 Ω
SKYA21062 Frequently Asked Questions (FAQs)
-
Skyworks provides a recommended PCB layout and land pattern in their application note AN2039, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Skyworks offers a free online tool called the Skyworks Tuner's Companion, which helps designers optimize the input and output matching networks for their specific application. Additionally, the application note AN2039 provides guidance on matching network design.
-
The SKYA21062 is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and proper thermal management is crucial to ensure reliable operation.
-
The SKYA21062 has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
-
A good power supply decoupling scheme is essential to ensure stable operation. Skyworks recommends using a combination of ceramic and electrolytic capacitors, with a total capacitance of at least 10 μF, placed close to the device's power pins.
Trust Checks
Community Provided
System Verified
Community Approved
SKYA21062 Overview

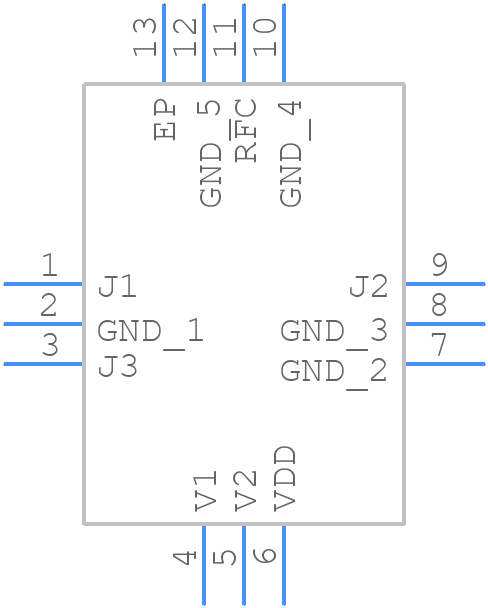

Use the download button to access the SKYA21062 schematic symbol, PCB footprint, and 3D model.
