The maximum operating temperature range for the SKYPER32R is -40°C to 150°C, with a maximum junction temperature of 150°C.
Proper thermal management for the SKYPER32R can be achieved by using a heat sink with a thermal resistance of less than 1.5 K/W, and ensuring good airflow around the device. Additionally, the device should be mounted on a PCB with a thermal vias design to dissipate heat efficiently.
The recommended gate drive voltage for the SKYPER32R is 15V, with a maximum gate drive voltage of 20V. A gate drive voltage of 15V ensures reliable switching and minimizes the risk of damage to the device.
Yes, the SKYPER32R can be used in a parallel configuration to increase the current handling capability. However, it is essential to ensure that the devices are matched in terms of their electrical characteristics, and that the gate drive signals are synchronized to prevent uneven current sharing.
The recommended snubber circuit configuration for the SKYPER32R is a series R-C circuit with a resistance value of 10-20 ohms and a capacitance value of 10-20 nF. This configuration helps to reduce voltage overshoots and ringing during switching transitions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKYPER32R Overview

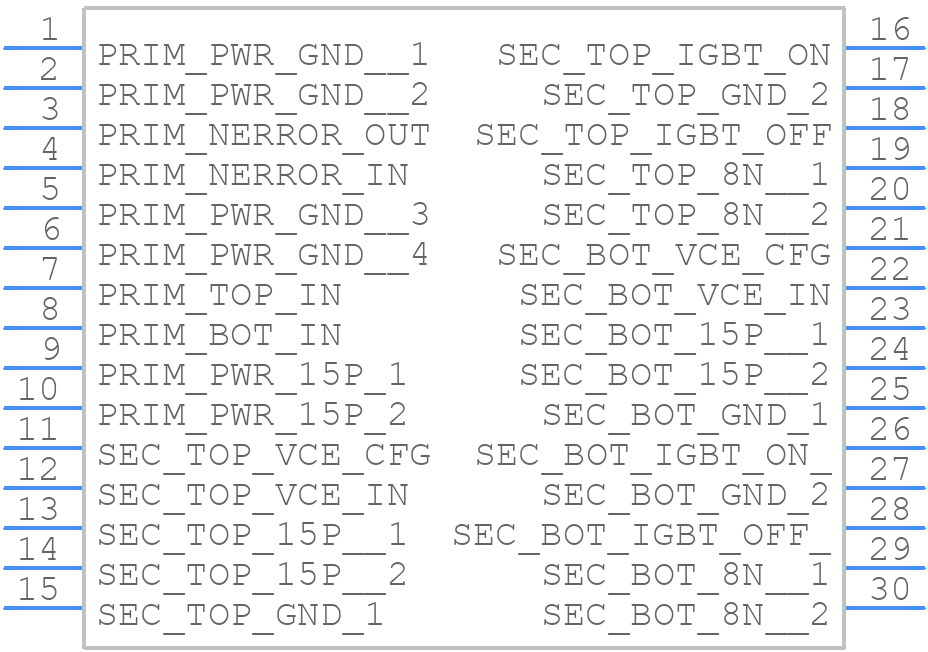

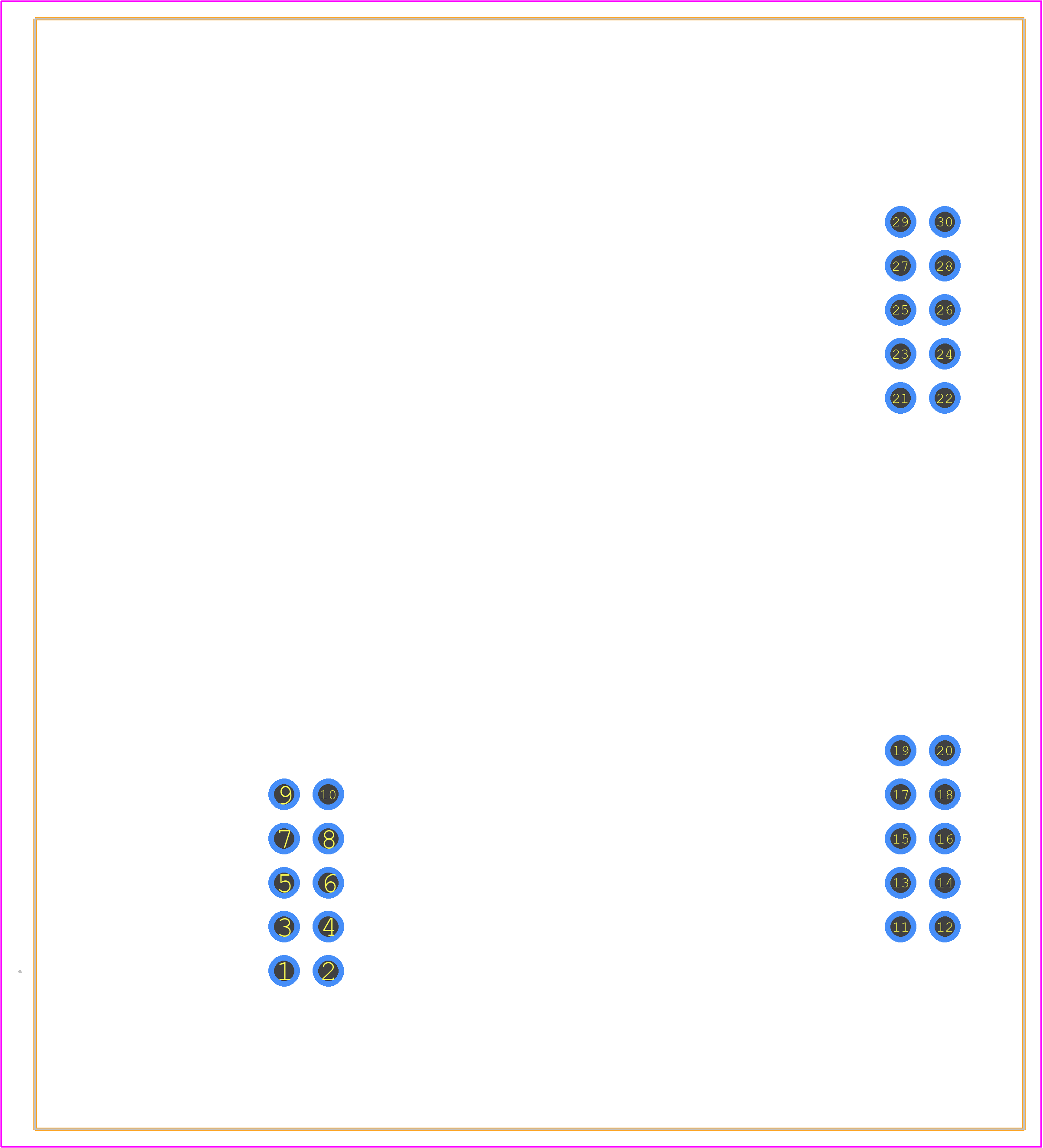

Use the download button to access the SKYPER32R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKYPE,
or try a keyword search, such as Motion Control Electronics
