SLA5074 - SANKEN ELECTRIC CO.

Description: MOSFET 4N-CH 60V 5A 15-SIP

Download SLA5074 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

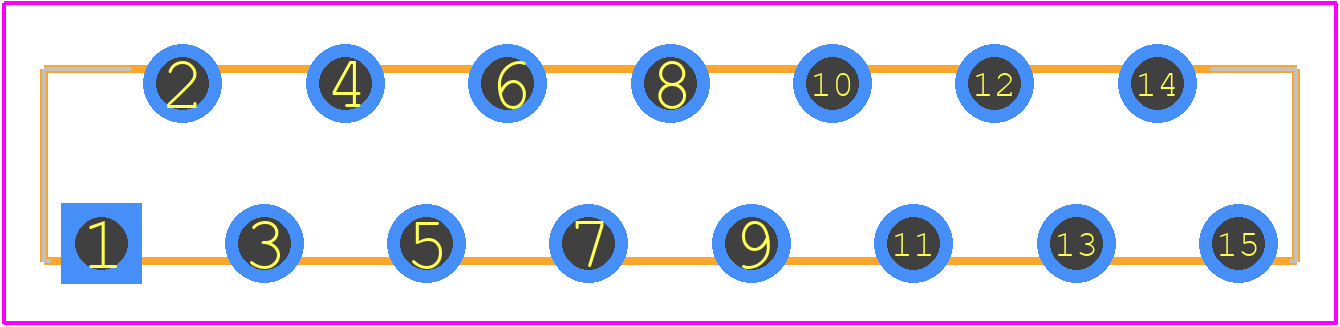

SLA5074 - SANKEN ELECTRIC CO. PCB footprint - Other - Other - SLA5074-5
click to zoom
3D Models
SLA5074 - SANKEN ELECTRIC CO.  - 3D model - Other - SLA5074-5
click to zoom

SLA5074 Details

  • Manufacturer Part Number:

    SLA5074

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SLA, SIP-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sanken Electric Co Ltd

  • YTEOL:

    5.1

  • Case Connection:

    ISOLATED

  • Configuration:

    2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.3 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSFM-T15

  • Number of Elements:

    4

  • Number of Terminals:

    15

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    8 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
