Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the PCB.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink if necessary, and consider derating the device's current output according to the temperature derating curve provided in the datasheet.
Allegro recommends using a low-ESR ceramic capacitor with a value of 10 μF to 22 μF, rated for the input voltage, and placed as close to the device's input pins as possible to minimize noise and ripple.
Yes, the SLA7024MLF871 is suitable for battery-powered applications due to its low quiescent current and high efficiency. However, it's essential to consider the device's shutdown current and ensure that it meets the application's power budget requirements.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors for correct values and connections. Verify that the device is properly configured and that the output capacitor is suitable for the application. If issues persist, consult the datasheet's troubleshooting section or contact Allegro's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLA7024MLF871 Overview

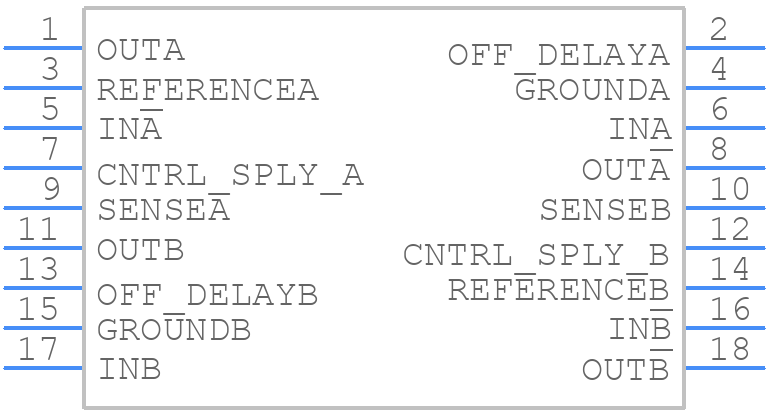

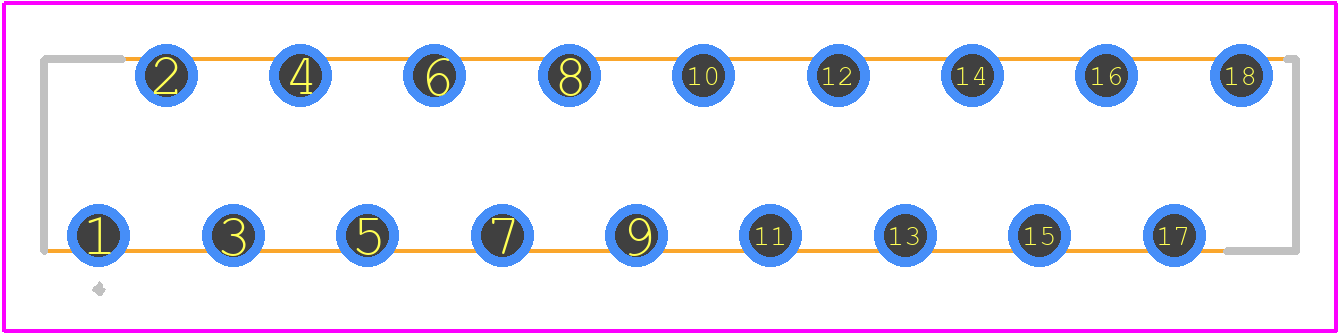

Use the download button to access the SLA7024MLF871 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLA70,
or try a keyword search, such as Motion Control Electronics
