A symmetrical layout with a central ground plane, minimal track lengths, and a decoupling capacitor (e.g., 100nF) close to the device is recommended for optimal performance and noise reduction.
The SLA7033M requires a single 5V supply (VCC) and a separate ground (GND). Ensure proper power sequencing by applying VCC before enabling the device (EN pin). A 10uF capacitor on VCC is recommended for noise filtering.
The maximum current rating for the output stage of the SLA7033M is 1.5A peak, with a recommended maximum continuous current of 1A. Exceeding this may cause overheating or damage to the device.
Check the power supply, ensure proper connections, and verify the enable pin (EN) is properly driven. Use an oscilloscope to monitor the output waveform and verify it meets the expected specifications. Consult the datasheet and application notes for further guidance.
Yes, the SLA7033M has a maximum junction temperature (Tj) of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLA7033M Overview

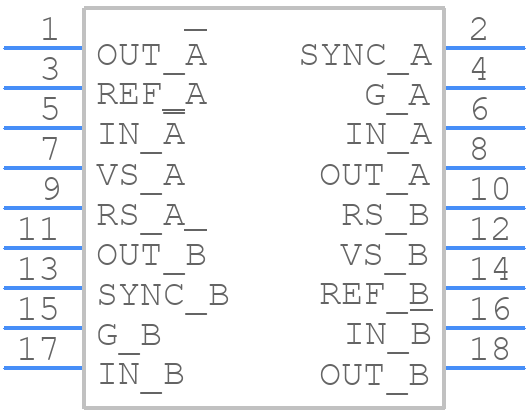

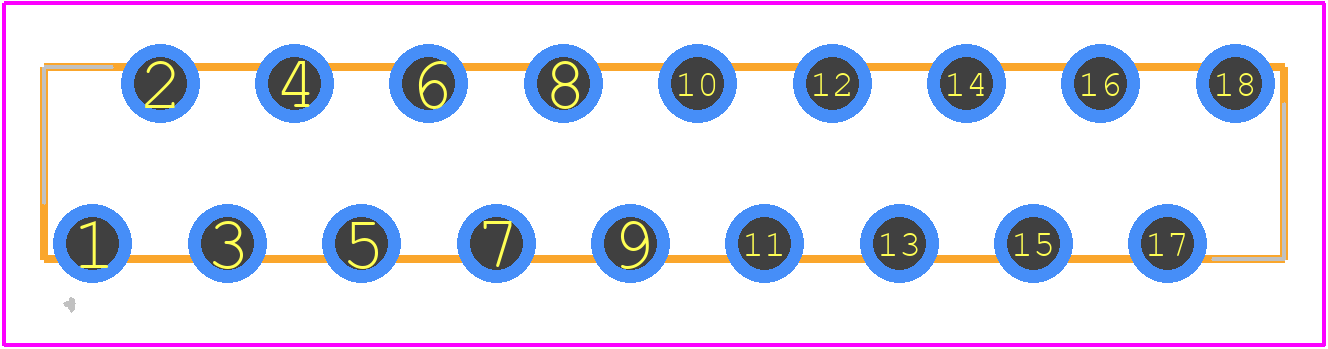

Use the download button to access the SLA7033M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLA70,
or try a keyword search, such as Motion Control Electronics
