A good thermal design should be used to ensure the device operates within the recommended temperature range. A minimum of 2 oz copper thickness is recommended, and thermal vias should be used to dissipate heat. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or Allegro's application notes for specific guidance.
The SLA7062MLF2102 requires a stable power supply with minimal noise and ripple. A decoupling capacitor (e.g., 10uF ceramic) should be placed close to the device, and the power supply lines should be filtered using a ferrite bead or a pi-filter. Additionally, ensure the PCB layout is designed to minimize electromagnetic interference (EMI).
The SLA7062MLF2102 is a QFN package, which requires a controlled soldering process to prevent damage. Allegro recommends using a reflow oven with a peak temperature of 240°C (max) and a dwell time of 30-60 seconds. For rework, use a hot air station with a temperature-controlled nozzle and a low-flow nitrogen atmosphere.
Use a logic analyzer or an oscilloscope to monitor the device's output signals. Check the device's input signals, power supply, and decoupling capacitors. Consult Allegro's application notes and datasheet for specific troubleshooting guidelines. If issues persist, contact Allegro's technical support for further assistance.
The SLA7062MLF2102 is rated for operation in the -40°C to 125°C temperature range. Ensure the device is operated within the recommended temperature range and humidity levels. Follow Allegro's recommended storage and handling procedures to prevent damage. Consult the datasheet and application notes for specific reliability and environmental considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLA7062MLF2102 Overview

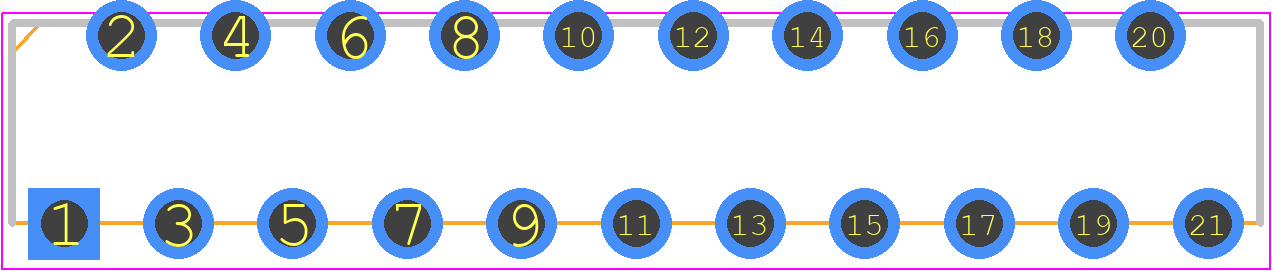

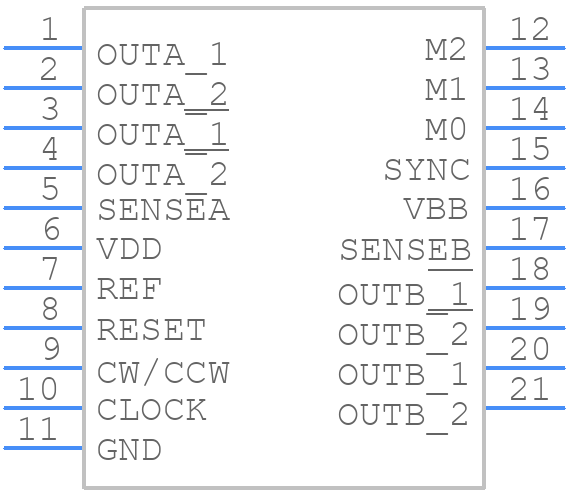

Use the download button to access the SLA7062MLF2102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLA70,
or try a keyword search, such as Motion Control Electronics
