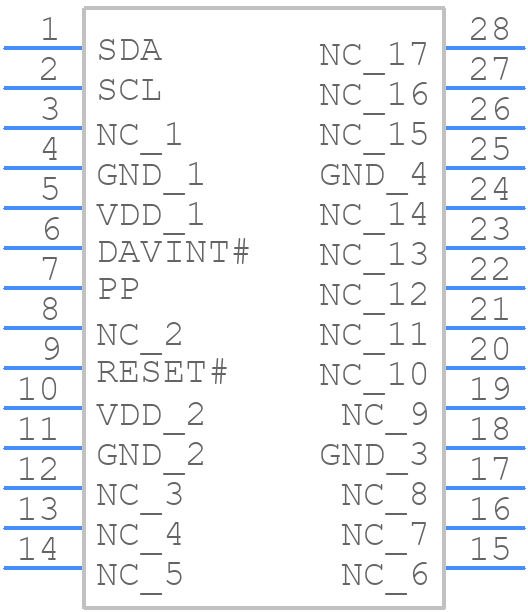

SLB9645TT12FW13333XUMA2 - Infineon

SLB9645TT12FW13333XUMA2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the package to ensure good thermal conductivity. A minimum of 5 thermal vias with a diameter of 0.3 mm is recommended.
• How do I ensure reliable operation in high-temperature environments?
  Infineon recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK between the package and the heat sink. Additionally, ensure good airflow and avoid blocking the airflow around the device.
• What is the maximum allowed voltage on the input pins?
  The maximum allowed voltage on the input pins is 5.5 V, which is the absolute maximum rating. However, for reliable operation, it is recommended to keep the input voltage below 5 V.
• How do I handle ESD protection during manufacturing and handling?
  Infineon recommends following standard ESD protection procedures, such as using ESD-safe materials, grounding personnel, and using ESD-protective packaging. Additionally, ensure that the device is handled in a controlled environment with humidity below 60%.
• What is the recommended soldering profile for this device?
  Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time above liquidus of 30-60 seconds, and a cooling rate of 4°C/s. Refer to the Infineon soldering guide for more details.
