Infineon provides a recommended PCB layout guide in their application note AN215, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
According to Infineon's datasheet, the SLB9665VQ20FW563XUMA3 requires a stable power supply with a decoupling capacitor of at least 10uF between VCC and GND. Additionally, it's recommended to use a low-ESR capacitor and to place it as close as possible to the device.
The SLB9665VQ20FW563XUMA3 is specified to operate within a temperature range of -40°C to 125°C, as stated in the datasheet. However, it's recommended to operate the device within a narrower temperature range of 0°C to 85°C for optimal performance and reliability.
Infineon provides a troubleshooting guide in their application note AN217, which covers common issues and their solutions, such as debugging techniques, error detection, and fault analysis.
Infineon recommends following the JEDEC standard J-STD-020 for soldering and rework conditions, which includes guidelines for temperature, time, and humidity control to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLB9665VQ20FW563XUMA3 Overview

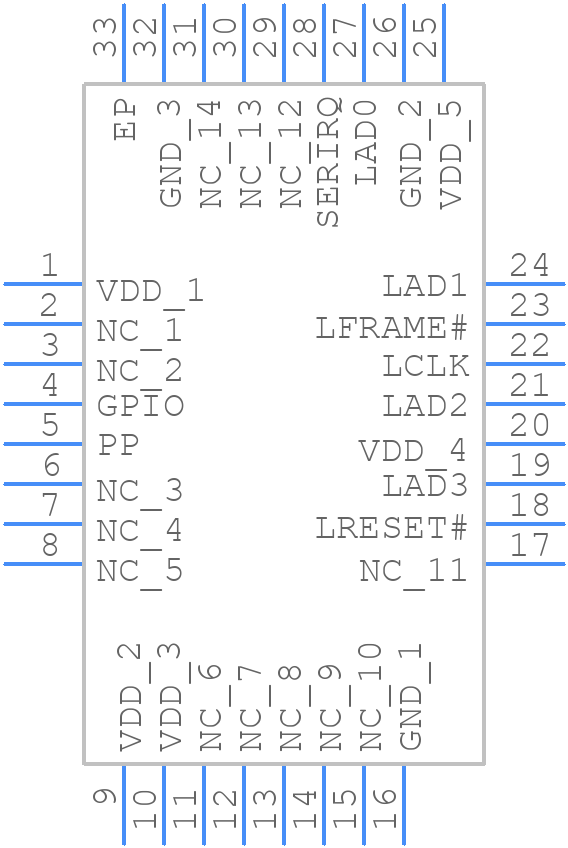

Use the download button to access the SLB9665VQ20FW563XUMA3 schematic symbol, PCB footprint, and 3D model.
