Description:Security ICs / Authentication ICs TPM SLB9670 is the latest product featuring a fully TCG TPM 2.0 standard compliant module with a SPI interface.
Infineon provides a recommended PCB layout guide in their application note AN215, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SLB9670VQ20FW785XTMA1 requires a stable power supply and proper decoupling to ensure reliable operation. Infineon recommends using a low-ESR capacitor (e.g., 10uF) close to the device's power pins, and following the power supply design guidelines outlined in the datasheet.
The SLB9670VQ20FW785XTMA1 has a maximum junction temperature of 150°C. To ensure reliable operation, Infineon recommends using a thermal interface material (TIM) and a heat sink with a thermal resistance of ≤ 10°C/W. The device's thermal pad should be connected to a solid ground plane to facilitate heat dissipation.
Infineon provides a troubleshooting guide in their application note AN217, which covers common issues and debugging techniques for the SLB9670VQ20FW785XTMA1. Additionally, engineers can use oscilloscopes and logic analyzers to debug signal integrity and protocol issues.
The SLB9670VQ20FW785XTMA1 requires firmware or software support for configuration, monitoring, and control. Infineon provides a software development kit (SDK) and example code for popular microcontrollers, which can be used as a starting point for custom firmware development.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLB9670VQ20FW785XTMA1 Overview

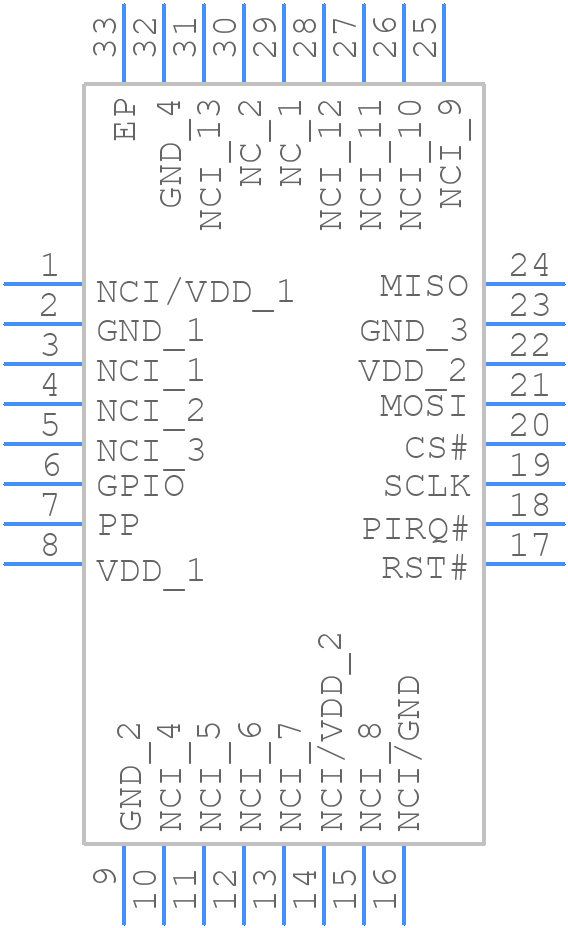

Use the download button to access the SLB9670VQ20FW785XTMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SLB96,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
