The recommended PCB layout and land pattern can be found in the Nidec Copal Electronics Corporation's application note or design guide, which provides detailed guidelines for optimal performance and thermal management.
To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during the assembly process.
The maximum operating temperature range for the SLE210K4-6 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Handle the SLE210K4-6 with care to avoid mechanical stress, bending, or twisting. Store the devices in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow proper ESD handling procedures to prevent damage.
The recommended testing and inspection procedures for the SLE210K4-6 include visual inspection, solderability testing, and functional testing. Follow the guidelines outlined in the datasheet and industry standards such as IPC-A-610 and IPC-J-STD-001.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLE210K4-6 Overview

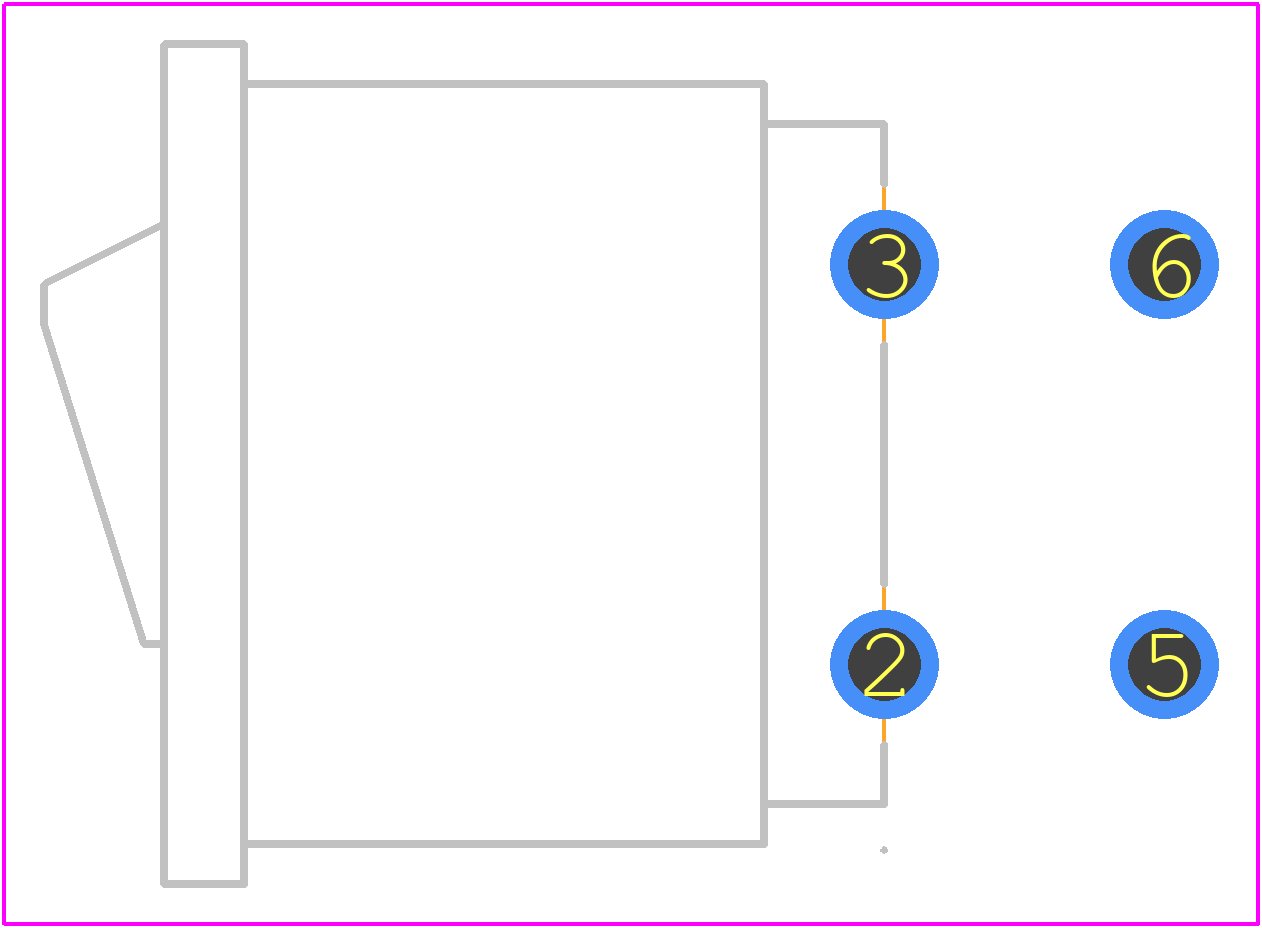

Use the download button to access the SLE210K4-6 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SLE21,
or try a keyword search, such as Rocker Switches
