SLF12575T-3R9N6R7-H - TDK

Description: SMD / SMT Inductors (Coils), L=3.9?H, L x W x T :

Download SLF12575T-3R9N6R7-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLF12575T-3R9N6R7-H - TDK - PCB symbol
click to zoom
PCB Footprints

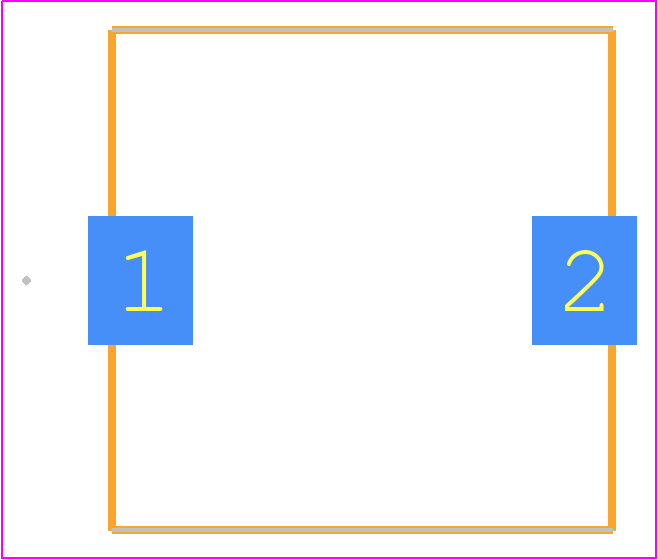

SLF12575T-3R9N6R7-H - TDK PCB footprint - Other - Other - SLF12575
click to zoom
3D Models
SLF12575T-3R9N6R7-H - TDK - 3D model - Other - SLF12575
click to zoom

SLF12575T-3R9N6R7-H Details

  • Manufacturer Part Number:

    SLF12575T-3R9N6R7-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Case/Size Code:

    4949

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0104 Ω

  • Inductance-Nom (L):

    3.9 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    7.5 mm

  • Package Length:

    12.5 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Current-Max:

    6.7 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DC RESISTANCE IS MEASURED AT 20%

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    30%

SLF12575T-3R9N6R7-H Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SLF12575T-3R9N6R7-H is available in the TDK Corporation's datasheet, but it's also recommended to consult the IPC-7351 standard for surface mount land patterns.
  • During reflow soldering, it's essential to follow the recommended temperature profile to avoid damaging the inductor. The maximum temperature rating for the SLF12575T-3R9N6R7-H is 260°C for 30 seconds. It's also recommended to use a soldering iron with a temperature control system to prevent overheating.
  • The SLF12575T-3R9N6R7-H inductor is designed for high-frequency applications up to 1 GHz. However, it's essential to consider the inductor's self-resonant frequency (SRF) and ensure it doesn't interfere with the operating frequency of your application.
  • To calculate the effective inductance, you need to consider the inductor's nominal inductance, the operating frequency, and the DC bias current. You can use the inductor's datasheet and application notes to determine the effective inductance. Additionally, you can use online calculators or simulation tools to simplify the calculation process.
  • Yes, the SLF12575T-3R9N6R7-H inductor is compatible with lead-free soldering. TDK Corporation ensures that their products comply with the RoHS directive and are suitable for lead-free soldering processes.
