SLF12575T-5R6N6R3-PF - TDK

Description: TDK Shielded Wire-wound SMD Inductor 5.6 μH ±30% Wire-Wound 6.3A Idc

Download SLF12575T-5R6N6R3-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLF12575T-5R6N6R3-PF - TDK - PCB symbol
click to zoom
PCB Footprints

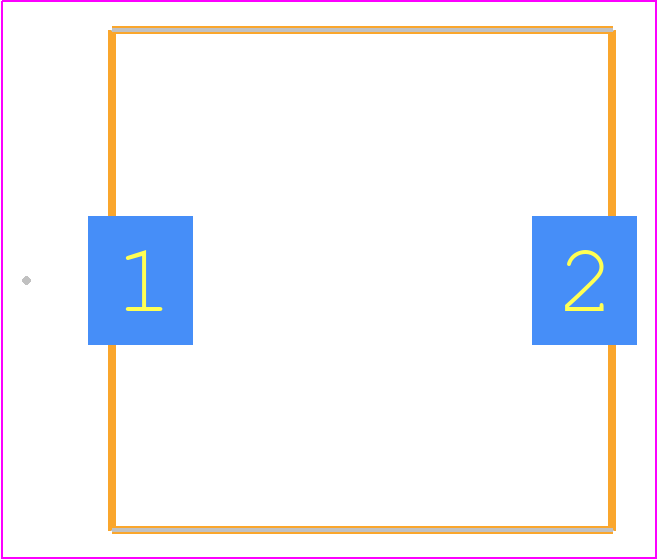

SLF12575T-5R6N6R3-PF - TDK PCB footprint - Other - Other - SLF12575
click to zoom
3D Models
SLF12575T-5R6N6R3-PF - TDK - 3D model - Other - SLF12575
click to zoom

SLF12575T-5R6N6R3-PF Details

  • Manufacturer Part Number:

    SLF12575T-5R6N6R3-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Case/Size Code:

    4949

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0116 Ω

  • Inductance-Nom (L):

    5.6 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    7.5 mm

  • Package Length:

    12.5 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Current-Max:

    6.3 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DCR IS MEASURED AT 20 % TOLERANCE

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    30%

SLF12575T-5R6N6R3-PF Frequently Asked Questions (FAQs)

  • The recommended land pattern for SLF12575T-5R6N6R3-PF can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • Handle the SLF12575T-5R6N6R3-PF component by the edges to prevent damage to the terminations. Avoid touching the component's leads or body to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat to discharge static electricity.
  • The maximum storage temperature for SLF12575T-5R6N6R3-PF is 40°C (104°F) according to the TDK Corporation's storage and handling guidelines. Storing the component above this temperature can affect its reliability and performance.
  • Yes, SLF12575T-5R6N6R3-PF is designed to withstand vibrations. However, it is essential to follow the recommended mounting and soldering procedures to ensure the component's reliability in high-vibration environments.
  • The equivalent series resistance (ESR) of SLF12575T-5R6N6R3-PF can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a vector network analyzer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLF12575T-5R6N6R3-PF Overview

Use the download button to access the SLF12575T-5R6N6R3-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLF12, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
