SLG46110V - Renesas Electronics

Description: Programmable Mixed Signal Matrix 1.8V to 5V 12-Pin STQFN

Download SLG46110V Model

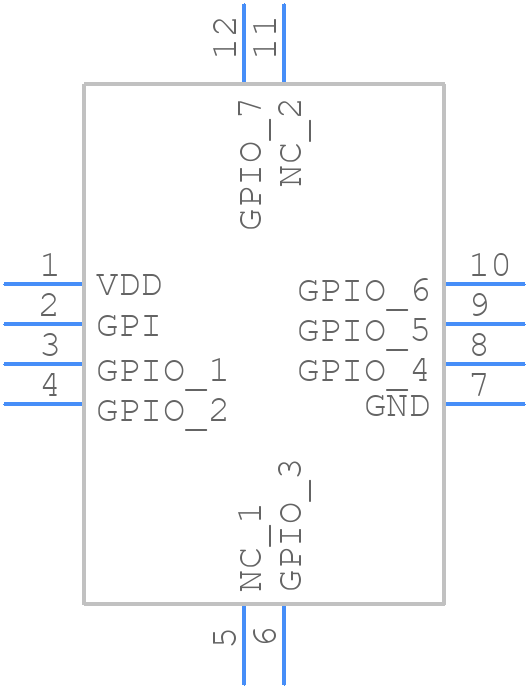

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLG46110V - Renesas Electronics PCB footprint - Other - Other - SLG46110V-4
click to zoom
3D Models
SLG46110V - Renesas Electronics  - 3D model - Other - SLG46110V-4
click to zoom

SLG46110V Details

  • Manufacturer Part Number:

    SLG46110V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    12

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CAN ALSO OPERATE AT 3.3V OR 5V SUPPLY

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    S-XQCC-N12

  • JTAG BST:

    NO

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    7

  • Number of Inputs:

    8

  • Number of Macro Cells:

    7

  • Number of Outputs:

    7

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 7 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.06SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.6 mm

SLG46110V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1155, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The internal oscillators can be configured using the OSCCTRL register. Renesas recommends using a high-frequency oscillator (e.g., 12 MHz) as the main clock source and a low-frequency oscillator (e.g., 32 kHz) as the RTC clock source. Additionally, the oscillator tuning registers (OSCTUNE) can be used to fine-tune the oscillator frequency for optimal stability.
  • The maximum current draw of the SLG46110V depends on the operating mode and frequency. According to the datasheet, the maximum current draw is approximately 150 mA at 1.8V and 12 MHz. To calculate the power consumption, multiply the current draw by the supply voltage. Renesas also provides a power consumption calculator tool to help estimate power consumption based on the specific application requirements.
  • Renesas provides a Secure Boot and Secure Firmware Update (SBU) solution for the SLG46110V, which includes a secure boot loader and firmware update mechanisms. The SBU solution uses cryptographic algorithms and secure key storage to ensure the authenticity and integrity of the firmware. Renesas recommends following their secure boot and firmware update guidelines to implement a secure boot process and ensure secure firmware updates.
  • The SLG46110V has a maximum junction temperature of 125°C. To prevent overheating, Renesas recommends following proper thermal management guidelines, such as using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device has a built-in thermal monitoring feature that can be used to detect overheating and take corrective action.
