SLG46110V footprint, schematic symbol and 3D model by Silego Technology

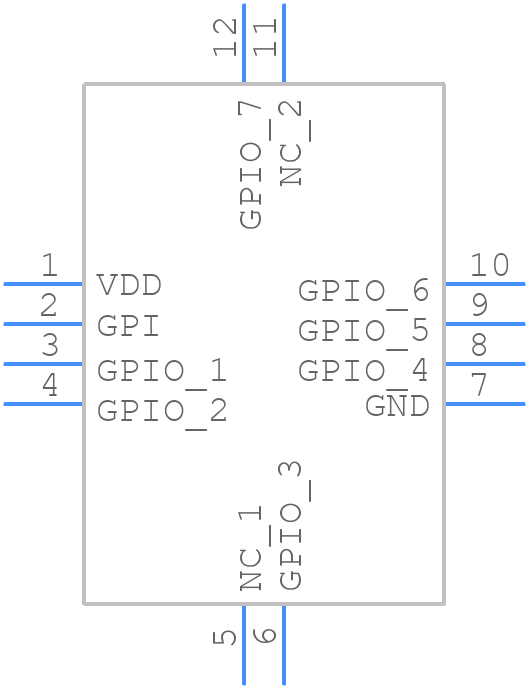

Symbol

click to zoom

PCB Footprints

SLG46110V - Silego Technology PCB footprint - Other - Other - STQFN-12

click to zoom

3D Models

SLG46110V - Silego Technology - 3D model - Other - STQFN-12

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SLG46110V
Part Number SLG46110V
Manufacturer Silego Technology
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - STQFN-12
Released Date Dec 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SLG46110V Details

Manufacturer Part Number:
SLG46110V
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
STQFN-12
HTS Code:
8542.31.00.55
Manufacturer:
Silego Technology Inc
Additional Feature:
CAN ALSO OPERATE AT 3.3V OR 5V SUPPLY
Architecture:
PLA-TYPE
In-System Programmable:
NO
JESD-30 Code:
S-XQCC-N12
JTAG BST:
NO
Length:
1.6 mm
Number of Dedicated Inputs:
1
Number of I/O Lines:
7
Number of Inputs:
8
Number of Macro Cells:
7
Number of Outputs:
7
Number of Terminals:
12
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
1 DEDICATED INPUTS, 7 I/O
Output Function:
MACROCELL
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC12,.06SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Programmable Logic Type:
OT PLD
Seated Height-Max:
0.6 mm
Supply Voltage-Max:
1.89 V
Supply Voltage-Min:
1.71 V
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
1.6 mm

SLG46110V Frequently Asked Questions (FAQs)

Silego provides a recommended PCB layout guide in their application note AN-101, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The SLG46110V has a built-in low-power mode that can be enabled by setting the PWROK pin low. Additionally, the device can be configured for low-power mode by programming the OTP (One-Time Programmable) memory with the desired power-saving settings.
The SLG46110V can operate up to 100 MHz, but the maximum frequency depends on the specific application and the quality of the PCB layout. It's recommended to consult with Silego's application engineers for specific guidance on frequency planning.
The SLG46110V is rated for operation up to 125°C, but it's essential to follow proper thermal management guidelines to ensure reliable operation. Silego provides thermal modeling and simulation tools to help designers optimize their designs for high-temperature environments.
Silego provides a range of debugging tools, including the SLG46110V Evaluation Board and the Silego GPAK (General Purpose Application Kit) software. These tools allow designers to monitor and debug the device's operation, identify issues, and optimize performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

SLG46110V Overview

Use the download button to access the SLG46110V schematic symbol, PCB footprint, and 3D model.
