Description:The SLG46117 combines the functionality and versatility of a programmable mixed-signal matrix with the capabilities of Renesas' CuFET technology. Capable of integrating a number common discrete ICs and passive components into a single device, the GreenPAK family’s SLG46117 enables high power switching with a soft-start 1.25 A P-Ch MOSFET with slew rate control and integrated discharge resistor.
Renesas provides a recommended PCB layout guide in their application note AN-1154, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The SLG46117V has a built-in power-on reset (POR) circuit, but it does not have a dedicated power sequencing pin. To implement power sequencing, you can use an external power sequencing controller or a simple RC circuit to delay the power-on of the device.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at temperatures above 70°C to ensure reliability and prevent thermal shutdown.
Yes, the SLG46117V is designed to operate in high-vibration environments, but it's essential to follow proper PCB design and assembly guidelines to ensure the device's reliability and prevent mechanical stress.
Renesas provides a troubleshooting guide in their application note AN-1155, which covers common issues, such as power-on reset failures, output voltage errors, and thermal shutdown. Additionally, you can use Renesas' online support resources and forums for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46117V Overview

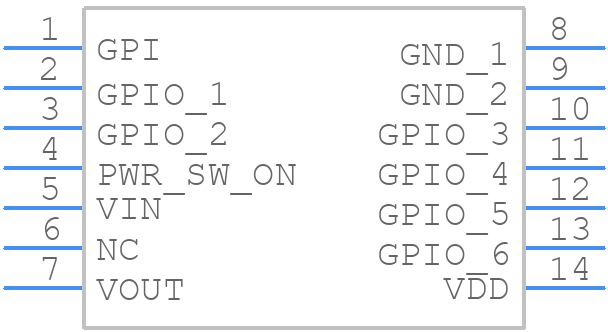

Use the download button to access the SLG46117V schematic symbol, PCB footprint, and 3D model.
