SLG46120V - Renesas Electronics

Description: STQFN-12 / I°/Field Programmable Gate Array MIXED SIGNAL MATRIX - Tape and Reel

Download SLG46120V Model
Schematic

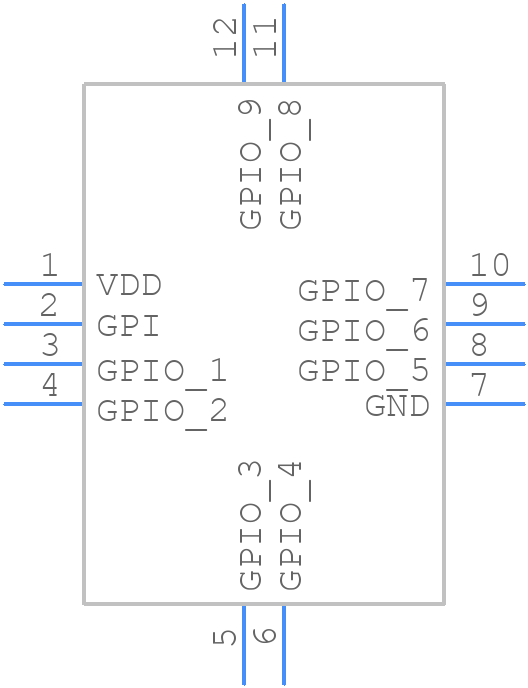

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SLG46120V - Renesas Electronics PCB footprint - Other - Other - 12 Lead STQFN FCA Package 1.6 x 1.6 mm
click to zoom
3D Models
SLG46120V - Renesas Electronics  - 3D model - Other - 12 Lead STQFN FCA Package 1.6 x 1.6 mm
click to zoom

SLG46120V Details

  • Manufacturer Part Number:

    SLG46120V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    12

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CAN ALSO OPERATE AT 3.3V OR 5V SUPPLY

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    S-XQCC-N12

  • JTAG BST:

    NO

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    9

  • Number of Inputs:

    10

  • Number of Macro Cells:

    12

  • Number of Outputs:

    9

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 9 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.06SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.6 mm

SLG46120V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1155, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The internal oscillators can be configured using the OSCCTRL register. Renesas recommends using a high-frequency oscillator (e.g., 12 MHz) as the main clock source and a low-frequency oscillator (e.g., 32 kHz) as the RTC clock source. Additionally, the oscillator tuning registers can be used to fine-tune the clock frequency for optimal stability.
  • The maximum current draw of the SLG46120V is approximately 150 mA. To ensure power integrity, Renesas recommends using a low-ESR capacitor (e.g., 10 uF) on the VDD pin, and a separate power plane for the analog and digital sections. Additionally, the power supply should be decoupled using a ferrite bead or a pi-filter to reduce noise and ensure stable operation.
  • Renesas recommends using a external reset circuit with a capacitor and a resistor to ensure a clean reset signal. The reset pin should be connected to a capacitor (e.g., 10 nF) and a resistor (e.g., 1 kΩ) in series, with the capacitor connected to the reset pin and the resistor connected to the power supply. This ensures a reliable reset signal and prevents false resets due to noise or power supply glitches.
