SLG46517M - Renesas Electronics

Description: The SLG46517 provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macrocells of the SLG46517. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit. The macrocells in the device include the following.

Download SLG46517M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

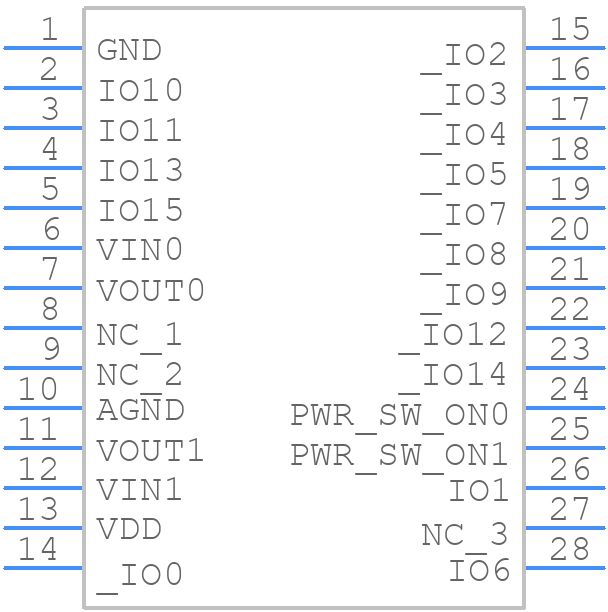

SLG46517M - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46517M - Renesas Electronics PCB footprint - Other - Other - SLG46517M-3
click to zoom
3D Models
SLG46517M - Renesas Electronics - 3D model - Other - SLG46517M-3
click to zoom

SLG46517M Details

  • Manufacturer Part Number:

    SLG46517M

  • Brand Name:

    Renesas

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSTQFN

  • Pin Count:

    28

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    1

  • Programmable Logic Type:

    OT PLD

SLG46517M Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1154, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The SLG46517M has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a recommended circuit configuration and calculation formula for setting the overcurrent threshold.
  • While the datasheet doesn't specify a maximum operating frequency, Renesas recommends operating the device at a maximum frequency of 1 MHz to ensure reliable operation and minimize power consumption.
  • The SLG46517M is rated for operation up to 125°C, but Renesas recommends derating the device's power consumption and voltage ratings at higher temperatures to ensure reliable operation. Consult the datasheet and application notes for specific guidelines.
  • Renesas provides a programming guide and software tools for programming the SLG46517M's One-Time Programmable (OTP) memory. The process typically involves using a programming adapter and software to upload the desired configuration data to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLG46517M Overview

Use the download button to access the SLG46517M schematic symbol, PCB footprint, and 3D model.
