Renesas provides a recommended PCB layout guide in their application note AN-1154, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The SLG46533V has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to connect an external resistor (R_OC) between the OC pin and GND, and set the overcurrent threshold using the I2C interface. Refer to the datasheet and application notes for more details.
The SLG46533V can operate up to 50 MHz, but the maximum frequency depends on the specific application and PCB layout. It's recommended to consult with Renesas support or a qualified engineer to determine the optimal operating frequency for your specific design.
The SLG46533V has multiple low-power modes, including shutdown, sleep, and hibernate. To configure low-power mode, you need to use the I2C interface to set the appropriate registers and configure the power management settings. Refer to the datasheet and application notes for more details.
Renesas recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC to protect the SLG46533V from electrostatic discharge. The specific ESD protection requirements depend on the application and operating environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46533V Overview

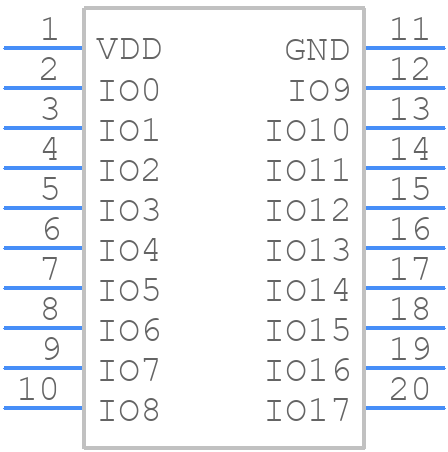

Use the download button to access the SLG46533V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG46,
or try a keyword search, such as Programmable Logic Devices
