SLG46536V - Renesas Electronics

Description: The SLG46536 provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macro cells of the SLG46536. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.

Download SLG46536V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

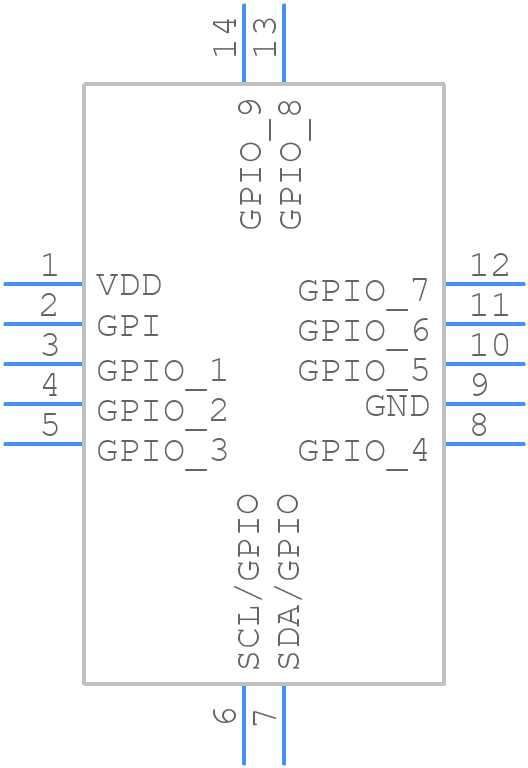

SLG46536V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46536V - Renesas Electronics PCB footprint - Other - Other - SLG46536V-3
click to zoom
3D Models
SLG46536V - Renesas Electronics - 3D model - Other - SLG46536V-3
click to zoom

SLG46536V Details

  • Manufacturer Part Number:

    SLG46536V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CAN ALSO OPERATE AT 3.3V OR 5V SUPPLY

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    R-XQCC-N14

  • JTAG BST:

    NO

  • Length:

    2.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    11

  • Number of Inputs:

    12

  • Number of Macro Cells:

    26

  • Number of Outputs:

    11

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 11 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.08X.09,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

SLG46536V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN-1153, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The SLG46536V has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to connect an external resistor (R_OC) between the OCP pin and GND, and set the OCP threshold voltage according to the datasheet.
  • The SLG46536V can operate up to 100 MHz, but the maximum frequency depends on the specific application and the quality of the PCB layout. Renesas recommends following the guidelines in their application note AN-1153 for high-frequency design considerations.
  • The SLG46536V is rated for operation up to 125°C, but it's essential to follow the thermal design guidelines and ensure proper heat sinking to prevent overheating. Renesas also recommends derating the device's performance at high temperatures.
  • The SLG46536V's internal registers can be programmed using the I2C interface. Renesas provides a programming guide in their application note AN-1154, which includes examples of I2C commands and register settings.
